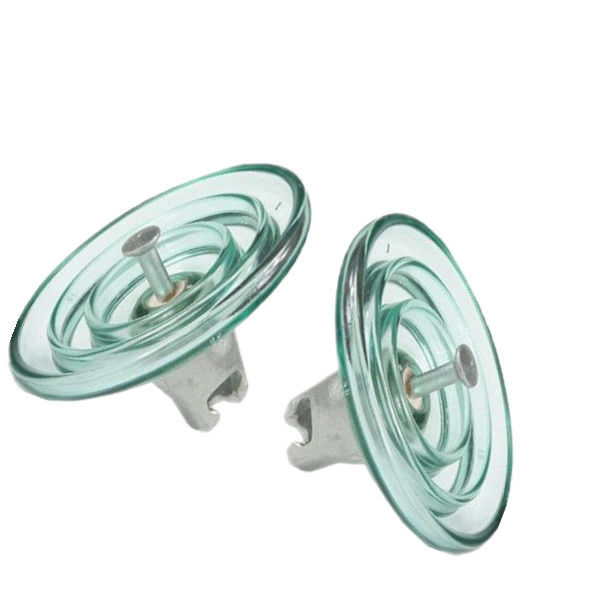

ASTM 70KN Glass Suspension Tongue Clevis Insulator

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Glass, Glass Type: Insulator
Model Number:: U120B/146 Certification: ISO9001/ROHS
Usage: Insulation Protection OEM/ODM: Available
High Light:

Glass Suspension Tongue Clevis Insulator

,

ASTM Tongue Clevis Insulator

,

70KN Glass Disc Insulators

Product Description

High Voltage Glass Suspension Tongue Clevis Insulator / 70KN Glass Disc Insulators







Quick Detail: High Voltage Glass Suspension Tongue Clevis Insulator / 70KN Glass Disc Insulators



REDG-160 high voltage toughened glass disc insulators
material: glass
main dimension: D=420mm,H=146mm
creepage distance 380mm

LXAP-160 high voltage toughened glass disc insulators

material: glass
main dimension: D=420mm,H=146mm
creepage distance 380mm



We are a professional manufacturer in making all various of insulators. Our products have won a high admiration and been trusted at home and abroad since our quality and price as well as best value service has a huge advantage. We can supply all kinds of products as per customer’s requirement. Welcome to contact us for more details.





Standard: IEC,ANSI,BS,AS,DIN,CAN and GB and etc.

Color: light gray,brown,white,sky blue and etc.

Non-standard products: Designed by TCI or specified by the customers.

We with strong researching and developing capability, mainly produces 10-500kv composite insulators. We are a high-tech enterprise which integrates the insulator design, production and sale into a whole body. Our products are all according to relative international standard and we have attained ISO9001 certification.



Product Range:



Technical Requirement
1
The contact surface of the steel leg and adhesive should be coated with a buffering agent layer prior to binding
2
Creepage distance:450mm
3
Others should comply with the provisions of IEC60383 , in addition to the provisions of drawing
4
Electrical performance:
1)
Lightnig impact withstand voltage (5 pieces):450KV
2)
Wet power-frequency withstand voltage (5 pieces):180KV
3)
Puncture withstand voltage:130KV
4)
Impact breakdown voltage in air:P.U=105KV
5)
Radio interference under 10KV:50uv
6)
Visible corona voltage:Steel leg:18KV Iron cap:22KV
7)
Electromechanical failing load test SFL=120KN X-3∝ ∧SFL



ITEM
DESCRIPTION
QTY
MATERIAL
1
Cap
1
Malleble cast iron
2
Cotter pin
1
Stainless steel-IEC120 size 16
3
Gasket
1
Asphalt felt
4
Adhesive
2
Portland cement
5
Steel leg
1
Forged steel coating
6
Glass piece
1
Toughened glass
7
Cushion
1
Low density polythene



ASTM 70KN Glass Suspension Tongue Clevis Insulator 0

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

ASTM 70KN Glass Suspension Tongue Clevis Insulator 1

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

ASTM 70KN Glass Suspension Tongue Clevis Insulator 2

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

ASTM 70KN Glass Suspension Tongue Clevis Insulator 3

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.



5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center

Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal

Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse

Quito, Ecuador

Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse

Lima, Peru

Lima (Peru) Sales and Service Center

Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse

Santiago, Chile

Santiago (Chile) Sales and Service Center

Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center





ASTM 70KN Glass Suspension Tongue Clevis Insulator 4





7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.





8. Customers and Partners of Dingli

ASTM 70KN Glass Suspension Tongue Clevis Insulator 5

ASTM 70KN Glass Suspension Tongue Clevis Insulator 6
