GCS 400V Low Voltage Withdrawable Switchgear For Substations

Product Description

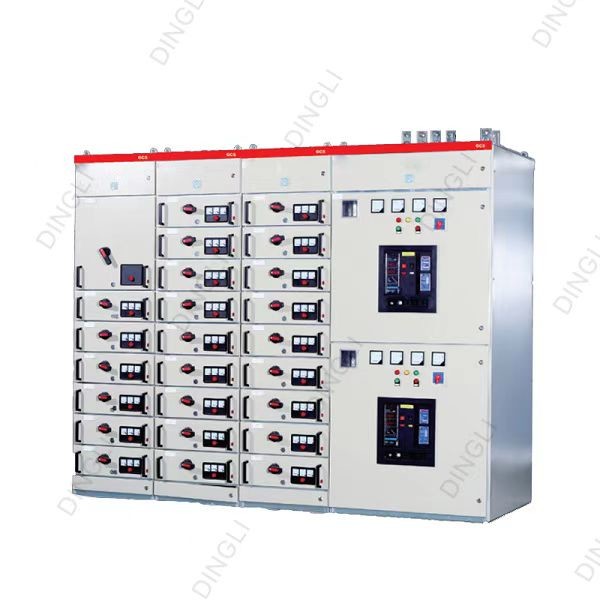

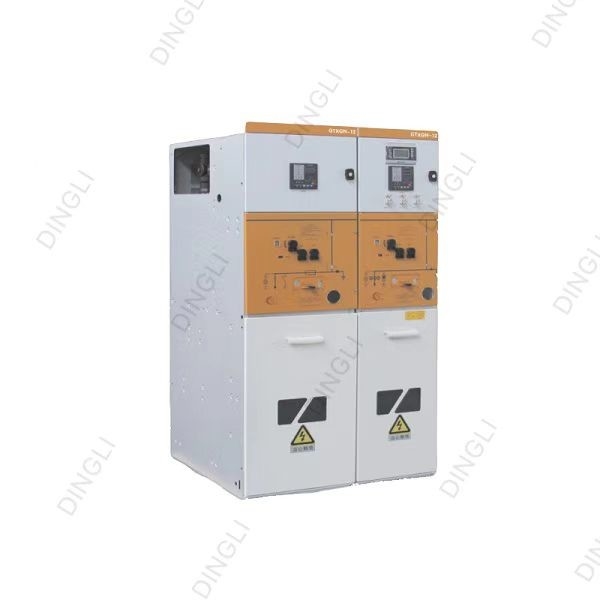

GCS Low Voltage Switchgear for Substations

Product details

Product Parameters

Description	Unit	Value
Main circuit rated voltage	V	380/660
Auxiliary circuit rated voltage	V	AC220,AC380,DC110,DC220
Rated Frequency	HZ	50(60)
Rated insulation voltage	V	660(1000)
Rated voltage horizontal busbar	A	≦6300
Frequency test voltage(V/1min)	V	2500
Ingress protection		IP30,IP40

Scope of Application

GCS low voltage withdrawable switchgear (hereinafter referred to as switchgear) is designed for electrical

power clients with high-tech performance standard, can meet the development of electrical power market ,

more competitive than other low voltage switchgear . GCS has been widely selected by power equipment

clients currently .



Switchgear widely used in the power distribution industry of power plant, petroleum, chemical, metallurgy,

textile, high-rise buildings , Etc . The three phase AC frequency 50/60HZ , Rated working voltage 380V (400V)

(660) , Rated current 6300A or below , It is the low voltage distribution equipment in power supply system,

centralized motor control and reactive power compensation .



This products compliance with standard : GB7251 <>, IEC60349 <> ,and JB/T9661 <> Regular Working Conditions



1. Ambient temperature : -15 degree ~ 40 degree , The average 24H temperature does not exceed +35 degree ,

if above the temperature , It need reduce the capacity according the actual condition.

2. The sea level height not above 2500m .

3. Relative humidity : Not exceed 50% at 40 degree , It allow the greater humidity at relatively low temperatures

4. Installation inclination shall not exceed 5 degrees, and the whole group of cabinets is relatively flat

5. The installation environment shall be without obvious filth, no explosive or corrosive gas and dust The installation

site shall be free of violent shock.

Remarks: If the environment is not conform with the above conditions , the user shall negotiate with the Company
