Electric Transformer Substation Power Distribution Switchgear For Power Station

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 400 Piece/Pieces per Year
Place of Origin: China Brand Name: DINGLI
Certification: CE ISO CCC IEC Model Number: YB-12/0.4

Detail Information

Place Of Origin: China Brand Name: DINGLI
Useage: Substation Color: Customer Request
Certificate: CE ISO CCC IEC Rated Voltage: 40.5KV
Rated Frequency: 50Hz/60v Rated Current: 630 1250 4600A
High Light:

Electric Substation Power Distribution Switchgear

,

Power Station Electrical Distribution Switchgear

,

40.5KV Power Distribution Switchgear

Product Description

Electric Transformer Substation Power Distribution Board Switchgear For Power Station

Product details

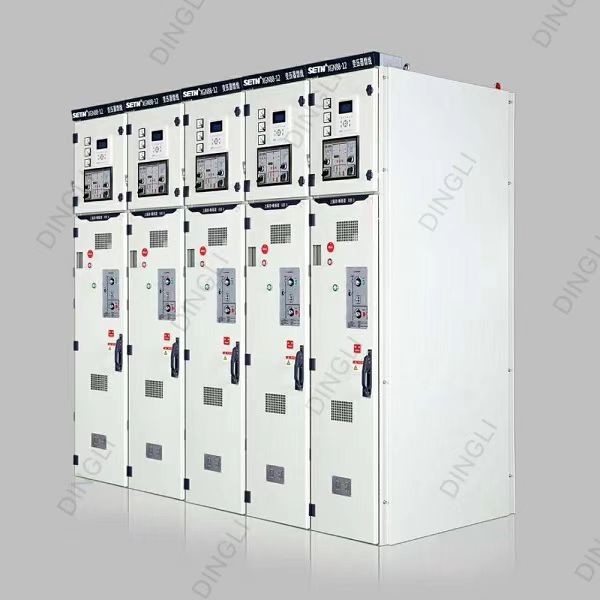

Electric Transformer Substation Power Distribution Switchgear For Power Station 0

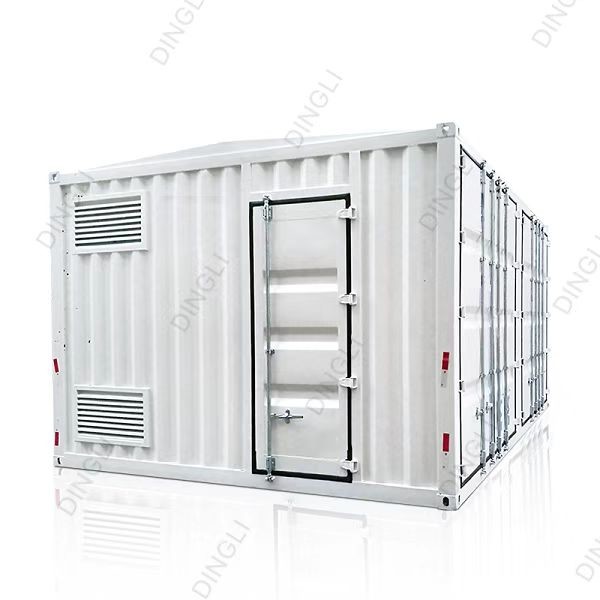

Electric Transformer Substation Power Distribution Switchgear For Power Station 1

Data sheet

Electric Transformer Substation Power Distribution Switchgear For Power Station 2

Main technical parameters
HV unit
Rated frequency
Hz
50
Rated voltage
kV
7.2 12 24 40.5
Rated current of main bus
A
630 1250 1600
Rated short-time withstand current / duration
kA/s
20/4 25/3 31.5/4
Rated peak withstand current
kA
50 63 80
1min power frequency withstand voltage (to-ground/between open contacts)
kV
32/36 42/48 65/79 95/115
Lightning impulse withstand voltage (to-ground/between open contacts)
kV
60/70 75/85 125/145 185/215
Rated short-circuit breaking current
kA
20 25 31.5
Ground loop short-time withstand current / duration
kA/s
20/2 20/4
Rated short-circuit making current of main loop
kA
50 63 80
Rated active load breaking current
A
630
Rated closed loop breaking current
A
630
Rated transfer current
A
1700
Mechanical life
times
3000 5000 10000
LV unit
Rated frequency
Hz
50
Rated voltage
kV
0.4/0.23
Rated insulation voltage
V
690
Rated current of main loop
A
100~3200
Rated short-time withstand current
kA/s
30/1 50/1 100/1
Rated peak withstand current
kA
63 105 176
5s power frequency withstand voltage
kV
2.5 3.75
Transformer unit
Rated frequency
Hz
50
Rated voltage
kV
7.2 12 24 40.5/0.4
Rated capacity
kVA
30~1600
1min power frequency withstand voltage
kV
25/20 35/28 55/50 85/75
Lightning impulse withstand voltage
kV
60 75 125 170
Impedance voltage
%
4~6
Tapping range

±×2.5% ±×5%
Connection group

Y,yn0 D,yn11
Type

Oil-immersed type, dry type
Cabinet body
IP code of HV and LV chambers

IP33D
IP code of transformer chamber

IP23D
Sound level (oil-immersed type/dry type)
dB
≤50/55
