2 Platforms 6 Communication Antennas Mounted Steel Mono Pole Self Supporting

Product Description

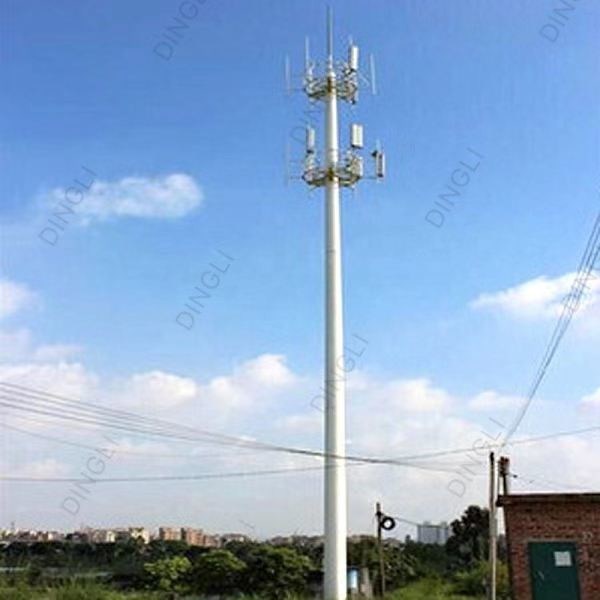

2 Platforms 6 Communication Antennas Mounted Self-Supporting Steel Pole And Tower



Product Description

1,Materials: Main pole Q355B steel, sub-frames Q235B steel

2,Platform:1-4 platforms,6 brackets each platform.

3,Height:6-55m

4,Wind Load Resistance Performance:0.35-1.1kN/㎡



PRODUCT SPECIFICATIONS

No	Item	Descriptions/Specifications
1	Name	Self-support high mast communication antenna monopole
2	Material	High performance structural carbon steel tubes or plates
3	Surface Finish	Hot dip galvanization or powder coating or PVDF coating
4	Height	6-55m
5	Wind speed	100-300km/h
6	Wind load	0.35-1.1kN/sqm
7	Applications	telecom antennas, signal transmitters and receivers, radars, telescopes etc.
8	Applied places	street roads, highways, public square, airports, railway stations, communities etc.

Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

Experienced senior engineers and technical staff keeping on learning can help perform design accurately and timely and ensure quality, reliability and innovation of products. With the help of the latest advanced design software of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes meeting complex landform and environment, so as to meet various needs of customers.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project delivers as specified. What’s more, he/she communicates with you every step of the way.

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

To improve the products’ quality and provide superior service for our customers, DINGLI has started using new Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA, which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization, which can meet ASTM standard, EN standard, GB standard under the computer control system.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.





4. Package

A. Profiles packing methods:

Profiles will be packed by drums. Each drum shall not exceed 2 tons. The profiles below length of 5.8 meters at least tied 4 times, above length of 5.8 meters at least tied 6 times, to ensure them are not scattered bundle.

Each drum could be adjusted by customers when packing. And there is a plastic filler piece between every two profiles to avoid being worn.

B. Steel Plate packing methods:

The steel plate ( including warning signs and number plate) will be packed by iron boxes, each box shouldn’t exceed 2 tons.

There are beams under the box for forklift loading. And each box has lifting holes around the foursquare easy for lift loading.

C. Bolts packing methods:

Each type of bolts ( including nuts, washers, etc.) will be individually wrapped in woven bags . Each woven bag should not exceed 30KG, then packed in metal bucket. Each bucket should not exceed 1.5 tons.

D. Identification

Correspondingly, each product has detailed identification from piece to packing box.

E. New packing solution

We also offer a better protect packing solution, named railway frame loading solution.

Techniques:

The products will be fixed as one unit in the container then mounted on the frame, and there are wheels under the frames. Installing rails in the container, put the frame with products into the container, then fix it.

In this case, we would additionally charge 1500USD/40GP for the cost price of welding frame and rails in the factory.

Remarks: Dingli has applied patent for this packing method in 20th OCT, 2016.
