Radio Octagonal Tubular Steel Tower Pole Signal High Monopole Telecommunicaiton

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 1000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001:2008 SGS COC Model Number: Single Tube Tower

Detail Information

Place Of Origin: China Model Number: Single Tube Tower
Certification: ISO9001:2008 SGS COC Material: Q345B/A572
Galvanization Standard: ASTM A123/ ISO 1461 Welding: AWS D 1.1
Height: 9-40M Structure: Overlap Connection
Type: Telecommunicaiton Steel Tower Pole Wind Speed: 0-300KM/H
High Light:

Tubular Steel Tower Pole

,

Octagonal Steel Tower Pole

,

33kv Steel Tower Pole

Product Description

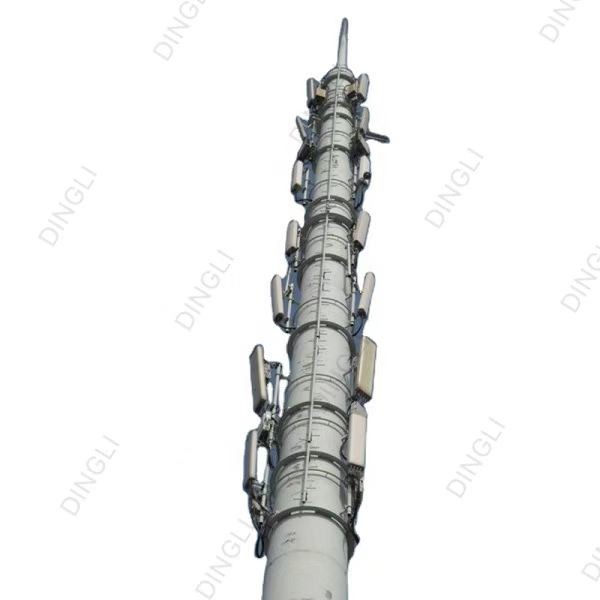

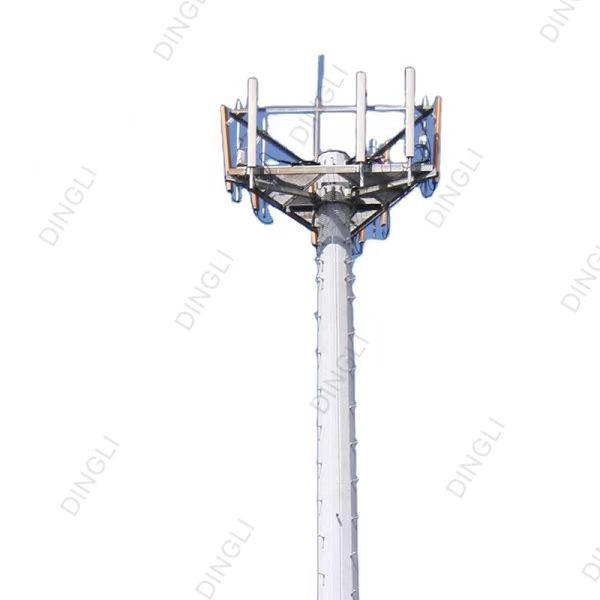

Radio Octagonal Tubular Signal High Monopole Telecommunicaiton Steel Tower Pole



Product Description

Design

1. Design Code

TIA/EIA-222-G/F

Structure Steel

2. Grade

Mild Steel

High Tensile Steel

GB/T 700:Q235B, Q235C,Q235D

GB/T1591:Q345B, Q345C,Q3455D

ASTM A36

ASTM A572 Gr50

EN10025: S235JR,S235J0,S235J2

EN10025: S355JR, S355J0,S355J2

3. Design Wind Speed

Up to 250 km/h

4. Allowable deflection

0.5 ~1.0 degree @ operational speed

5. Tension strength (Mpa)

360~510

470~630

6. Yield strength (t≤16mm) (Mpa)

355

235

7. Elongation (%)

20

24

8. Impact strength KV (J)

27(20°C)---Q235B(S235JR)

27(20°C)---Q345B(S355JR)

27(0°C)---Q235C(S235J0)

27(0°C)---Q345C(S355J0)

27(-20°C)---Q235D(S235J2)

27(-20°C)---Q345D(S355J2)

Bolts & Nuts

9. Grade

Grade 4.8, 6.8, 8.8

10. Standards for mechanical properties





10.1 Bolts

ISO 898-1

10.2 Nuts

ISO 898-2

10.3 Washers

ISO 6507-1

11. Standards for Dimensions





11.1 Bolts

DIN7990, DIN931, DIN933

11.2 Nuts

ISO4032, ISO4034

11.3 Washers

DIN7989, DIN127B, ISO7091

Welding

12. Method

CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

13. Standard

AWS D1.1

Marking

14. Method of marking of the members

Hydraulic Press Stamping

Galvanizing

15. Galvanization standard of steel sections

ISO 1461 or ASTM A123

16. Galvanization standard of bolts and nuts

ISO 1461 or ASTM A153

Test

17. Factory test

Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
