Medium Voltage Metal Clad Withdrawable Switchgear IEC62271

Product Description

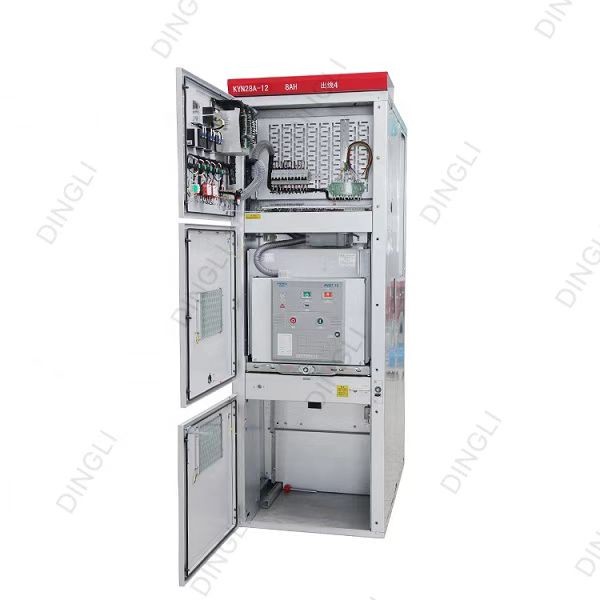

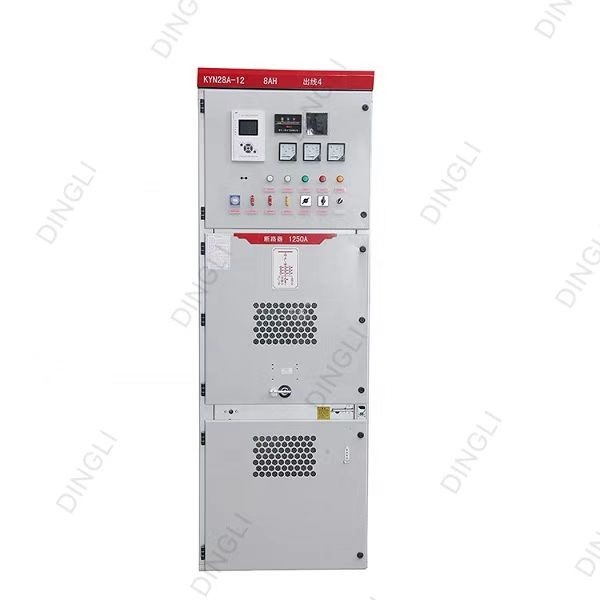

DINGLI Medium Voltage Metal Clad Withdrawable Switchgear KYN28 For Substation



Product details



Specification

No.	Description		Unit	Parameter
1	Rated voltage		kV	12	24
2	Rated current		A	630 - 4000	630-3150
3	Rated frequency		Hz	50	50
4	Rated busbar current		A	630 - 4000	630-3150
5	Power frequency withstand voltage (1min)	Phase to phase/earth	kV	42	65
		Across the isolating distance		48	79
6	Lightning impulse withstand voltage	Phase to phase/earth	kV	75	125
		Across the isolating distance		85	145
7	Rated short circuit breaking current		kA	25, 31.5, 40	25, 31.5, 40
8	Rated short circuit making current (peak)		kA	63, 80, 100	63, 80, 100
9	Rated peak withstand current		kA	63, 80, 100	63, 80, 100
10	Rated short time withstand current		kA	25, 31.5, 40	25, 31.5, 40
11	During of short circuit		s	4	25, 31.5, 40
12	Protection degree			Enclosure IP4X; partition between compartments IP2X	Enclosure IP4X; partition between compartments IP2X
