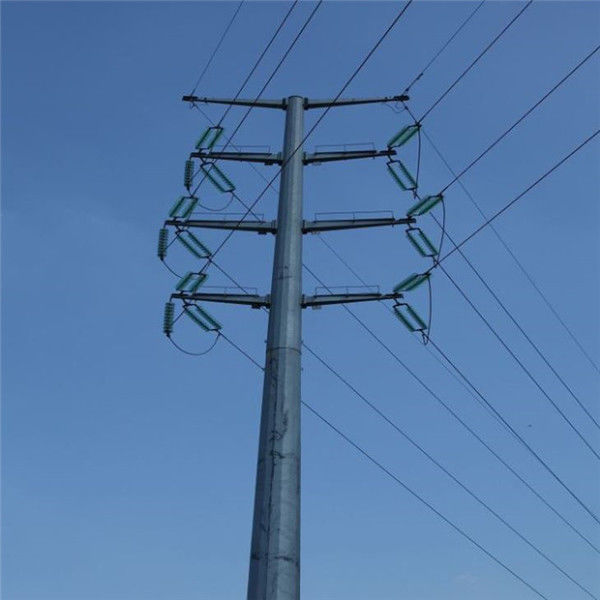

Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 2000 Ton per Month
Place of Origin: china Brand Name: China
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel Model Number: DINGLI

Detail Information

Material: ASTM A36,ASTM A572 GR65, GR50, Etc. Type: Straight Pole ,Tensile Pole ,Turn Pole
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Galvanization: Hot Dip Galvanization Suit For: Electricity Distribution
High Light:

galvanized steel pole

,

steel utility pole

Product Description

Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust

Quick Detail:

1.Galvanized electrical post octagonal electrical post galvanized steel pole

Galvanized electrical post octagonal electrical post

Description:

Since its establishment 50 years ago, Henan Dingli Pole & Tower Co.,Ltd has been devoting itself to research, development and manufacturing of pole and tower. It has rich experience in manufacturing and design.

Applications:

1. Galvanized electrical post octagonal electrical post galvanized steel pole

The Steel tubular pole: Through traditional technology and advanced technology and with the help of multiple advanced machines, we have developed advanced steel tubular poles. Varying from 10kV to 220kV, type and application scope of steel tube poles from the Company are wide, including pole types of single-circuit and double-circuits overhead lines. The Company owns two manufacturing workshops and the annual output can be 36,000t. The Company frequently provides a reliable solution for basic specification of steel tubular pole, special crossarm requirement and configuration of multiple accessories. The Company has obtained rich production experience in the challenging production field of steel tubular poles over years, so as to meet needs under conditions of various geological landforms and wind speeds.

The Company owns an advanced management system. For the whole process of order signing, raw material preparation, sample testing, product processing and manufacturing and transportation, the Company uses an advanced internal working platform generally to achieve sharing and transmission of internal resources; it is simple but no working procedures or related services are missing; design and manufacturing technology are integrated, so as to achieve seamless connection between various departments, shorten the overall work cycling time, improve the work efficiency and meet the current needs of rapid development.

Specifications:

Galvanized electrical post octagonal electrical post galvanized steel pole



Type Straight Pole ,Tensile Pole ,Turn Pole
Suit for Electricity distribution
Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical



Material

Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Torlance of dimenstion +-2%
Power 10 KV ~550 KV
Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.



Joint of Poles

Insert mode,innerflange mode,face to face joint mode .



Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes the welding beautiful in shape



Welding Standard :AWS ( American Welding Society ) D 1.1



Thickness 1 mm to 30 mm
Production Process Rew material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting→Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.





Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

Experienced senior engineers and technical staff keeping on learning can help perform design accurately and timely and ensure quality, reliability and innovation of products. With the help of the latest advanced design software of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes meeting complex landform and environment, so as to meet various needs of customers.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project delivers as specified. What’s more, he/she communicates with you every step of the way.

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

To improve the products’ quality and provide superior service for our customers, DINGLI has started using new Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA, which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization, which can meet ASTM standard, EN standard, GB standard under the computer control system.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 0





4. Package

A. Profiles packing methods:

Profiles will be packed by drums. Each drum shall not exceed 2 tons. The profiles below length of 5.8 meters at least tied 4 times, above length of 5.8 meters at least tied 6 times, to ensure them are not scattered bundle.

Each drum could be adjusted by customers when packing. And there is a plastic filler piece between every two profiles to avoid being worn.

B. Steel Plate packing methods:

The steel plate ( including warning signs and number plate) will be packed by iron boxes, each box shouldn’t exceed 2 tons.

There are beams under the box for forklift loading. And each box has lifting holes around the foursquare easy for lift loading.

C. Bolts packing methods:

Each type of bolts ( including nuts, washers, etc.) will be individually wrapped in woven bags . Each woven bag should not exceed 30KG, then packed in metal bucket. Each bucket should not exceed 1.5 tons.

D. Identification

Correspondingly, each product has detailed identification from piece to packing box.

E. New packing solution

We also offer a better protect packing solution, named railway frame loading solution.

Techniques:

The products will be fixed as one unit in the container then mounted on the frame, and there are wheels under the frames. Installing rails in the container, put the frame with products into the container, then fix it.

In this case, we would additionally charge 1500USD/40GP for the cost price of welding frame and rails in the factory.

Remarks: Dingli has applied patent for this packing method in 20th OCT, 2016.





Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 1

Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 2



5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center











Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 3

6. International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be completed in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing better to avoid the missing parts problem

Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 4



7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.



Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 5



Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 6



Product Testing:

On December 16, 2018, the steel poles FAT test for project 20kv transmission line in DR-Congo were carried out in our company's

steel pole test workshop. Participating in the test were representatives of the Spanish EPC and representatives team from the

Democratic State Grid of DR- Congo. A total of six representatives came to witness the results of the FAT test. There had 6

types of steel pole were carried out the FAT test. Items of FAT test includes: Material Test, Proofing Test and Loading Test.

Customers are very satisfied with the test results of our products. The higher test results show that the product quality of

our steel poles is very reliable.

8. Customers and Partners of Dingli

Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 7

Electricity Distribution Steel Pole Tower Octagonal Electrical Post Anti Rust 8
