Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 2000 Ton per Month
Place of Origin: china Brand Name: China
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel Model Number: DINGLI

Detail Information

Material: ASTM A36,ASTM A572 GR65, GR50, Etc. Available Height: 5-100M
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Galvanization: Hot Dip Galvanization Painting: According To Clients' Request
High Light:

galvanized steel pole

,

tower steel pole

Product Description

Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole

Quick Detail:

1.High Light Pole 15m to 18m steel warn 25m 30 meter high mast galvanized street light pole for square

Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any
kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor
lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent
standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.

Product Name:High Must Light Pole 15m to 18m steel warn 25m 30 meter high mast galvanized street

light pole for square

Product description of :Custom Made High Must Light Pole 15m to 18m steel warn 25m 30 meter high

mast galvanized street light pole for square By Street Light Pole Autocad Drawing.

Consist of Pole Shaft and Anchor Bolts.Pole Shaft - The pole shaft is fabricated from hot rolled welded

steel tubing of one-piece construction with a minimum yield strength of 42 KSI.

Technical Specs as follow: steel pole galvanized/color painted

Product Description
The speciality of China supplier galvanized solar street lighting poles / street lamp post:
Product name China supplier galvanized solar street lighting poles / street lamp post
Material Q235,Q345,Steel
Color Customized
Height 6-35 m
Thickness 4mm-14mm
Surface treatment Hot-Dip Galvanized and electrostatic spraying
Shape Conical,octagonal,Customized
Arm type Customized,single arm,double arms,triple arms
Base plate mounted anchor bolts,nuts,screws
Powder coating electrostatic spraying
Wind Resistance Customized,according to customers' environment
Welding standard Advanced submerge-arc welding technology according to Chinese Standard
Thickness of galvanized

80-100 microns in average according to ASTM A123



Production Process:

Raw Material

When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed.

When the raw material arrives at the warehouse, the quality department must take the elongation test and the

chemical composition analysis to make sure the raw material have meet all the standard that the needed before

production.

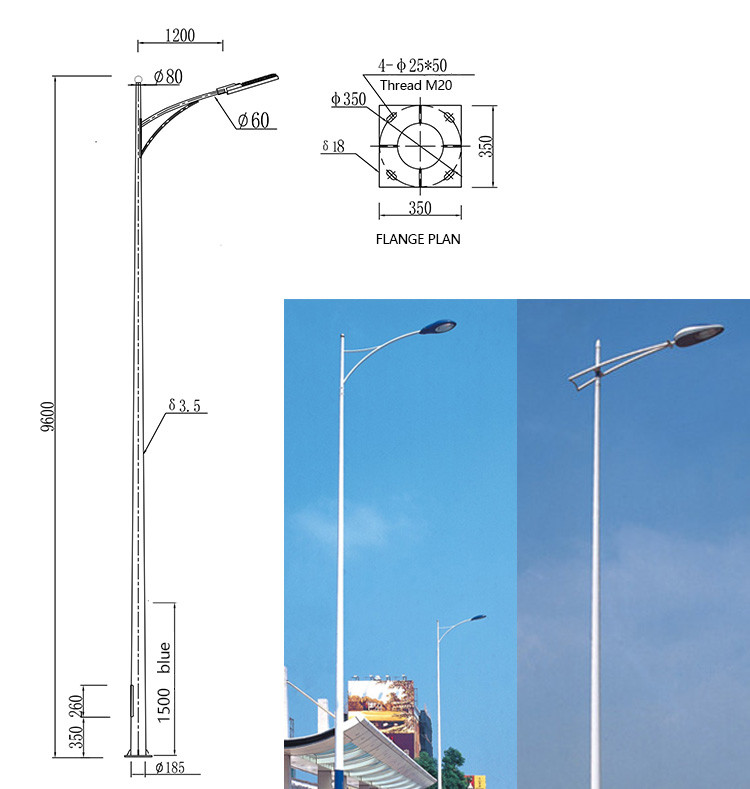

Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 0































Cutting:Cutting the raw material that have meet all the standard required into different length and width. CNC laser
cutting is used to direct the material or the lser beam generated. A typical commercial laser for cutting
materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto
the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes
away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.

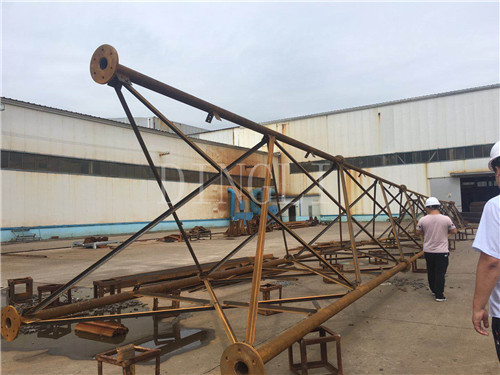

Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 1


























Molding
Forming the cut steel plate into the shape (circular or polygonal or other shape ) that as per specified
in the drawing. This invention relates to forming devices and more particularly to devices or machines
for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.

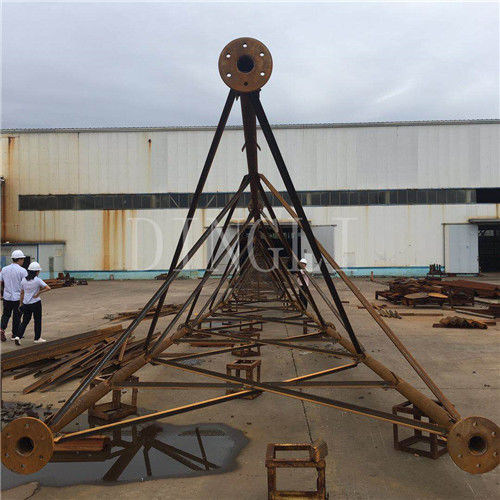

Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 2
Welding
After molding, weld the steel plate together. Usually it is longitudinal welds. It adopts A.C.inverter control, with
functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle
system to guarantee the alignment without aberrancy; The main frame and welding machine are intergrated
control, with flux auto-recovering system and it is easy to operate with high efficiency.
Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 3
Galvanization
All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in
the relevant drawing or specification Galvanization standard:IS2629-1985 ,BS729-197Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 4
Competitive Advantage:

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our

well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to

ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our

company anytime.

7. Exclusive and unique solution can be provided to our customer by our well-trained and professional

engineers and staff.

8. Special discount and protection of sales are provided to our distributor.

9. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more

than 20 years, competitive with good quantity.

Service

Experienced senior engineers and technical staff keeping on learning can help perform design accurately

and timely and ensure quality, reliability and innovation of products. With the help of the latest advanced

design software of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes

meeting complex landform and environment, so as to meet various needs of customers.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company

be available of designing accurately and timely and ensuring quality, safety and easy construction. On the

basis of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD

and other CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your

project delivers as specified. What’s more, he/she communicates with you every step of the way.

Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 5

Package

Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles

to avoid the damage on the galvanization of the pole ,anyway also can following by client required ,

The loading capacity of 40HC or OT an be calculated calculation base on the client actually specification and data.

Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 6

 International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity

of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be

completed in our factory, in this case, it will be avoided two times loading during transportation, we are

doing our best to protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing

better to avoid the missing parts problem

Square High Mast Light Pole Steel Warn 25m 30 Meter Galvanized Street Light Pole 7
