Outdoor Substation Current Transformer 220kV 132kV Over Voltage Protection

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ils All our goods are packed in wooden cases, with foam inside for protection. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100000 Unit/Units per Year
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: LVQB-220W(1~3) 132kV current transformer

Detail Information

Certification: ISO9001/CE/ROHS Color: Gray Or Brown
Purpose: Over-Voltage Protection Core Materials: Coper
Type: Light Duty, Heavy Duty Application:: Substation, Outdoor
Voltage: 132kV Current Transformer Core Structure: Toroidal
Core Number: 2 Or More Technology:: Vaccum Casting
Standard:: IEC 61869-2 Insulation: SF6 Gas
High Light:

protection current transformer

,

toroidal current transformer

Product Description

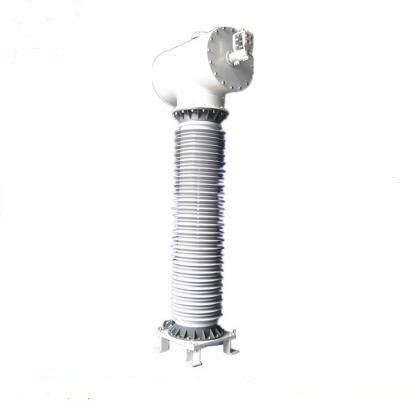

Outdoor Substation Current Transformer 220kV 132kV Over Voltage Protection



Quick Detail:

220kV 132kV Current Transformer Price for Substation



Product Description:

Gas Insulation High Voltage 220kV 230kV Current Transformer for Substation

1. Application: Guangdong Sihui instrument current transformers are widely used in commercial, industrial and residential areas. They are for current measuring and protection, delivering high accuracy in current metering. Our current transformers are having a wide range, including epoxy resin medium voltage current transformers, epoxy resin Low voltage current transformers, oil immerged current transformers, dry-type high voltage current transformers and gas SF6 high voltage current transformers and so on.

2. Main Features

1).All outside parts, such as terminal box and mounting plate, are made of corrosion proof materials.

2). Low partial discharge

3). Matching different sizes switchgears

4). Used in current measuring and protection, high accuracy

5). Less maintenance and pollution free

6). Easily operated and mounted

7). High mechanical strength and high dielectric strength

8).For cast resin current transformers, we have: post type CTs, contact cover enclosed CTs, wall gone-thru CTs, bar type CTs, special application CTs, plateau type CTs, TAT CTs , low voltage CTs, ring type CTs , window type CTs and CTs for residual current and so on.

3. Technical Specifications

1) Rated Primary Current: up to 8000A

2) Rated Secondary Current: 1A or 5A

3) Rated Primary Voltage: 0.66kV up to 1000kV

4) Thermal Burden Value: up to 200VA or custom specified

5) Insulation Material: epoxy resin, oil or gas SF6

6) Winding: high quality enameled copper wire

7) Frequency: 50Hz or 60Hz

8) Accuracy Class: 0.2, 0.5, 10P10, 10P, 3, 0.2S, 0.5S, PR, PX and PTS and so on

9) Installation Place: indoor or outdoor

10) Multi windings, up to 3 windings or more

*Except for the parameters listed above, we can design as per clients’ requirements.

4. Manufacturing Standard: IEC60044-1:2003, GB1208-2006

5.Technical Parameters for LVQB3-220W(1~3) Current Transformers.

5.1 Rated voltage 220 kV

5.2 Highest voltage for equipment 252 kV

5.3 Rated primary current 300A~4000 A

5.4 Rated secondary current 5 A or 1 A

5.5 Rated frequency 50 (60) Hz

5.6 20~50VA (If any other rated output required, We can satisfy it.)

5.7 Accuracy class and accuracy classes combination

Steady accuracy classes are 0.2S, 0.2, 0.5S, 0.5, 5P, 10P, PR and PX; transient accuracy classes are TPS, TPX, TPY and TPZ. There are 1~7 pcs secondary windings in a CT.

5.8 Rated operating pressure of the gas SF6 is 0.40 MPa

5.9 Minimum operating pressure of the gas SF6 is 0.35 MPa

5.10 Instrument security factor (FS) of measuring class 5 or 10

5.11 Accuracy limit factor (ALF) of protective class 5, 10, 15, 20, 30 or 40

5.12 Rated continuous thermal current Icth 1.2In

5.13 For rated short-time thermal current Ith (rms) and rated dynamic current Idyn (peak), please see

Table 1.

Primary Current (A) 300~800 1000~2500 3000~4000
Rated Short-time Thermal Current (rms) (kA), 3s 42 50 63
Rated Dynamic Current (Peak) (kA) 105 125 158



5.14 Arcing Distance ≥2010 (mm)

515 Creepage distance of outer insulation please see Table 2



Table 2

Pollution Protection Class Class II (W1) Class III (W2) Class IV (W3)
Creepage Distance (mm) ≥5040 ≥6300 ≥7812



Notes: Detailed technical data and outline drawing are provided upon request...
