11kv 12kv Indoor Cast Resin Dry Type CT Current Transformer Class 0.5

Product Description

11kv 12kv Indoor Cast Resin Dry Type CT Current Transformer Class 0.5



Quick Detail:

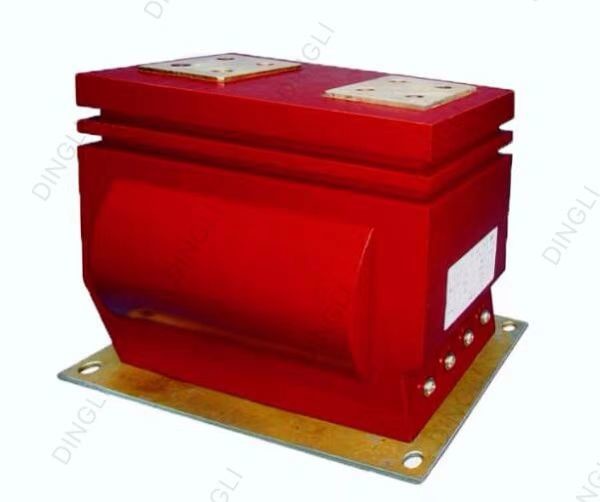

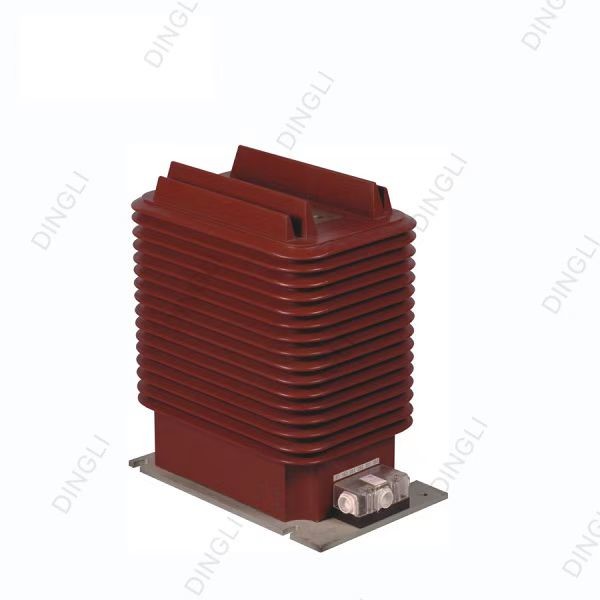

LZZBJ9 current transformer (CT) epoxy resin casting and full enclosed construction, is used indoor switch

cabinet to measure the current, electric energy and protective relaying in single phase or three phase AC

circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV
The iron core adopts advanced cold-rolled silicon steel sheet, high voltage outgoing line of primary winding

was fetched out from top of the product, outgoing line of secondary winding was fetched out from transverse

side of the product, IEC68869-1&2.



Technical Data:

1) Rated insulation level: 12/28/75kV
2) Rated frequency: 50/60Hz
3) Installation site: Indoor
4) Technical standard: IEC 60044-1:2003, IEC 61869-1&2



Specification

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p 0.2 (s)/0.5/10p 0.2 (s)/0.5/10p/10p/10p 0.2 (s)/0.5/10p/10p/10p/10p	10 15	15	15 20	10 15 20	5 (10)	150I1n	375I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2500-3150/5							100	160
3500-4000/5							100	160

Shipping:

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
