66kV 69kV 72.5kV 200/5a CT Current Transformer Live Tank Electric Substation Equipment

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 1000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO14001;ISO 9001

Detail Information

Place Of Origin: China Usage: Instrument
Phase: Single Coil Structure: Wound
Coil Number: 1-7 Product Name: 72.5kv Current Transformer
Type: Inductive;oil Immersed Frequency: 50HZ;60HZ
Rated Voltage: 66kV;69kV Rated Output: 10VA;30VA
High Light:

72.5kV 200/5a CT Current Transformer

,

69kV CT Current Transformer

,

66kV Electric Substation Equipment

Product Description



66kV/69kV/72.5kV 200/5a Current Transformer Live Tank Electric Substation Equipment

Product Description

Quick Detail:

66kv/69kv72.5kV Current Transformer

72.5W3 current transformer is inverted oil/paper insulation type product. The main insulation is wound from high

voltage cable paper, and is placed several capacitor screen of voltage division in the primary insulation, which

can improve electric field distributing and decrease the consumption of insulation material.

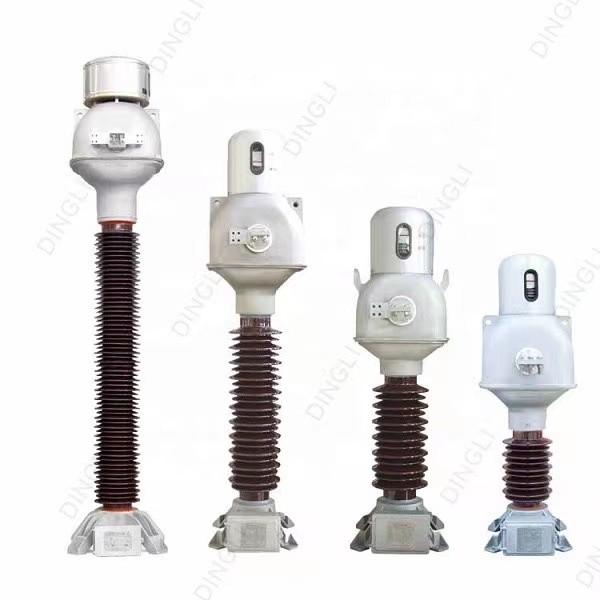

66kV 69kV 72.5kV 200/5a CT Current Transformer Live Tank Electric Substation Equipment 0

Product Details Show

66kv/69kv72.5kv Outline Drawing

This series oil-immersed inverted current transformer, it is an inverted full closed structure. It consists of a

bellows,oil level guage, primary terminal, a body, a porcelain bushing, a base, a terminal box, rating plate

oil drain valve,and earthing pad.

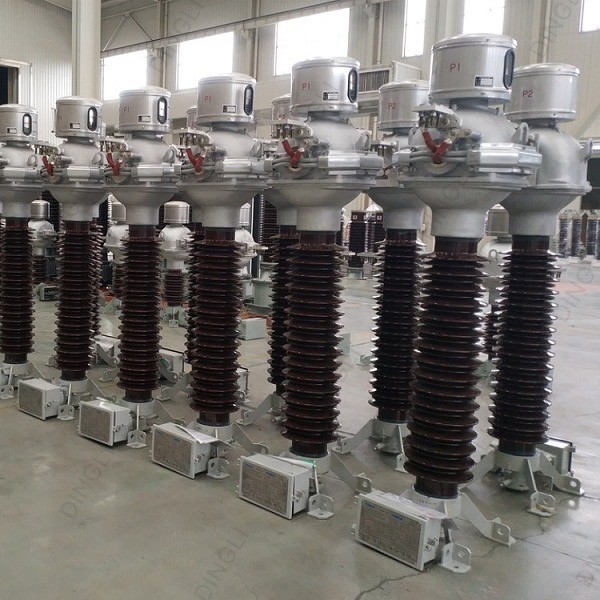

66kV 69kV 72.5kV 200/5a CT Current Transformer Live Tank Electric Substation Equipment 1

Structure Characteristics
1. Profile
These kind of current transformer is a oil-immersed inverted type structure with capacitor screen bushing,

a good insulation performance, small diameter to make the product compared to the tank type structure have

a lower weight for transporation and installation conveniently.
The top of product is the current transformer active parts, the mid-parts is the porcelain bushing, and the bottom

is base. The tank, base and terminal box are all the casting aluminum.
Change of the primary winding could achieve the different ratios, such as 1:2,1:2:4 and so on. Provide the

reliable earthed terminal for the terminal box. All the current transformer are the sealed structure, at the top of product

has a stainless steel bellow, it could adjust the volume change due to the temperature change at a certain scope.

2. External Insulation
The external insulation is made of HV and high strength porcelain bushing materials.
For the surface maintenance methods, please refer to the ‘Inspection and Maintenance’ .

3. Primary Connection Terminal
The primary connection terminal is at the top of Current Transformer, the shape and size are determined as per

special requirements of contract. Please refer to the below figure to find that how to change the ratio by change of

primary connection.

4. Secondary Connection Terminal
The secondary connection terminals are located in the moistureproof secondary terminal box.
Secondary connection terminals apply PHOENIX combinated connection terminals for connecting with the 2.5~10mm2

connection leads conveniently.
Safety Caution: The secondary winding of current transformer must be short-circuit and special terminal ‘CT’ must be

earthed when unused.
5. Earth Terminal
There is one earth terminal on the base of current transformer.

66kv/69kv/72.5kv Technical Data Sheet
Rated primary voltage,kV
66 or 69
110 or 115
132 or 138
Highest voltage for equipment, kV
72.5
123 or 126
145
Rated frequency, Hz
50/60
Rated power frequency withstand voltage, kV



160
230
275
Rated lightning impulse voltage, kV
350
550
650
Flashover distance, mm
700
1100
1300
Cree. distance, mm
W1:1450
W2:1820
W3:2250
W1:2520
W2:3150
W3:3910
W1:2900
W2:3630
W3:4500
Mechanical load, N
3000
3000
3000
Rated primary current, A
5~5000
Rated secondary current, A
1;2;5
Accuracy class
0.1; 0.2; 0.5; 0.2S; 0.5S; 0.5S; 5P; 10P; PX...
Rated output(recommended value), VA
1A: 10~30 VA; 2A: 10~30 VA; 5A: 15~50VA
Instrument security factor FS
5;10
Accuracy limit factors ALF
10; 15; 20; 25; 30
Short-time thermal current (Maximum), kA
50KA/3S

Shipping:

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

66kV 69kV 72.5kV 200/5a CT Current Transformer Live Tank Electric Substation Equipment 2
