125kva 10kv Combined Substation Current Transformer Box Type

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: ZGS11-125

Detail Information

Certification: ISO9001 Usage: Power
Coil Structure: TOROIDAL Phase: Three
Rated Capacity: 250kVA No-load Loss: 0.24kW
High Voltage: 10kV Impedance Voltage: 4%
No-load Current: 1.7% Connection Method: Yyn0/Dyn11
Rated Frequency: 50/60Hz Load Loss: 1.89/1.8kW
High Light:

125kva Substation Current Transformer

,

10kv Substation Current Transformer

,

Box Type Substation Current Transformer

Product Description

ZGS11 125kva 10kv Box Type Combined Current Transformer Substation



Quick Detail:

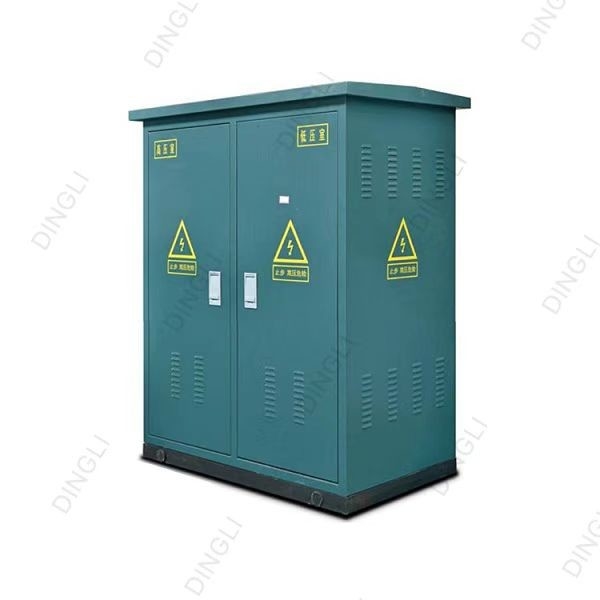

125kva 10kv Combined Substation Current Transformer Box Type 0

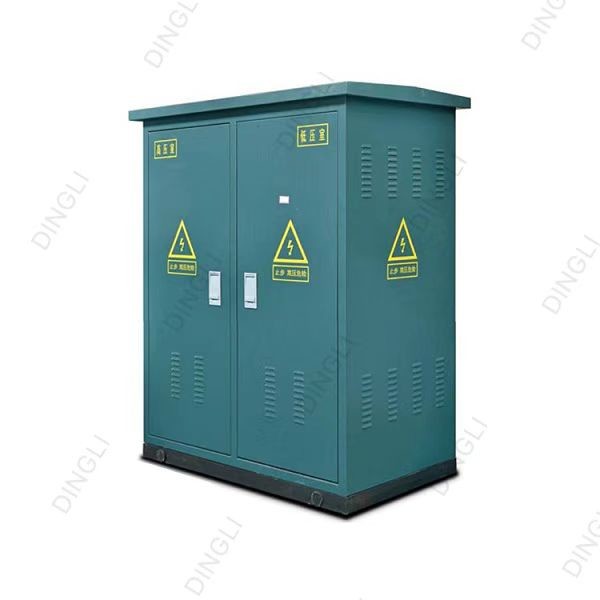

125kva 10kv Combined Substation Current Transformer Box Type 1

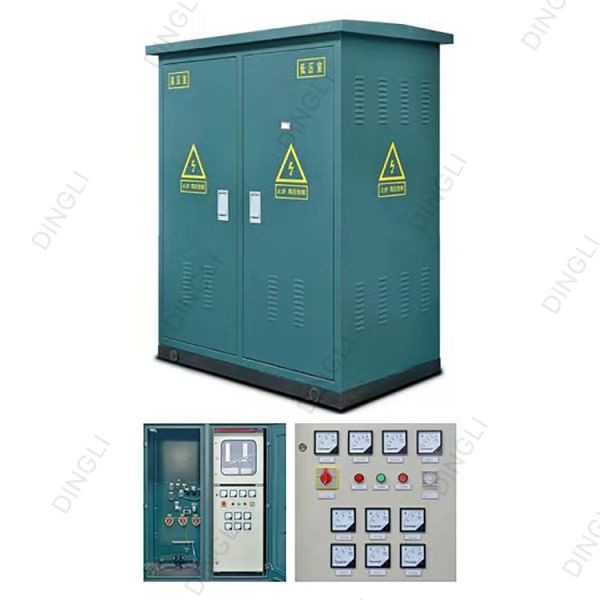

125kva 10kv Combined Substation Current Transformer Box Type 2

125kva 10kv Combined Substation Current Transformer Box Type 3

Combined transformer (also known as American box change), as an important power supply unit in the cable

distribution network, the product puts the high-voltage load switch and high-voltage fuse in the cabinet of the

transformer. The fuel tank adopts a fully sealed structure, and the transformer oil in the box has good insulation

performance and heat dissipation performance. It has the advantages of small size, light weight, convenient

installation and maintenance, safety and reliability, and beautiful appearance. Widely used in urban, residential

quarters, hotels, hospitals, factories, mines, oil stations, airports, railways, terminals and other outdoor power

supply sites.

Small Size And Compact Structure
The floor space is only 1/3-1/5 of the domestically produced box with the same capacity. Fully sealed, fully insulated structure, no insulation distance. Excellent performance, safe and reliable, low loss, low noise.
125kva 10kv Combined Substation Current Transformer Box Type 4

125kva 10kv Combined Substation Current Transformer Box Type 5
Good Heat Dissipation Performance
The transformer adopts the corrugated sheet to dissipate heat. After special processing, it has strong anti-corrosion ability and
various shapes and structures. It can be made of ordinary steel plate and stainless steel.

Good Compatibility
The high-voltage incoming line adopts cable plug, which can be equipped with zinc oxide arrester to meet various low-voltage feeding requirements. According to user requirements, low-voltage metering and shunting can be added.
125kva 10kv Combined Substation Current Transformer Box Type 6

125kva 10kv Combined Substation Current Transformer Box Type 7
Strong Overload Capacity
S11 type transformer, the product is divided into three parts: main high pressure chamber, low pressure chamber and transformer. It is conventionally arranged in "good" type, and the high pressure side adopts V type or T type load switch plus two-stage fuse. The protection can be used for the ring network and for the terminal, and the power supply mode is flexible and reliable.

Complete Components
The high pressure chamber is equipped with components such as oil wet gauge, oil credit gauge, pressure gauge, pressure relief
valve and oil drain valve to monitor the operation of the transformer.
125kva 10kv Combined Substation Current Transformer Box Type 8

Specification

Rated Capacity

125kVA

High Voltage

10kV

Low Voltage

0.4kV

Impedance Voltage

4%

No-load Loss

0.24kW

Load Loss

1.89/1.8kW

No-load Current

1.7%

Frequency

50/60Hz

Connection Method

Yyn0/Dyn11

Size

1830x1365x1735mm

Shipping:

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

125kva 10kv Combined Substation Current Transformer Box Type 9

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50

years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering

survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment

and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction

projects and made an outstanding contribution to UHV transmission lines of China.

125kva 10kv Combined Substation Current Transformer Box Type 10















































Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
