3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ils All our goods are packed in wooden cases, with foam inside for protection. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 500 Set/Sets per Month Competitive price high voltage 345kv current transformer in subs
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: SFZ-370000/400

Detail Information

Certification: ISO9001/CE/ROHS Type: Light Duty, Heavy Duty
Voltage: 132kV Current Transformer Core Structure: Toroidal
Core Number: Autotransformer Frequency:: 50/60Hz
Rated Primary: 363kv Test Lightning Impulse Voltage:: 1175kV
Standard: IEC ANSI IEEE GOST Coil Number:: 1-8
Insulating Medium:: Oil/sulfur Hexafluoride
High Light:

protection current transformer

,

flexible current transformer

Product Description

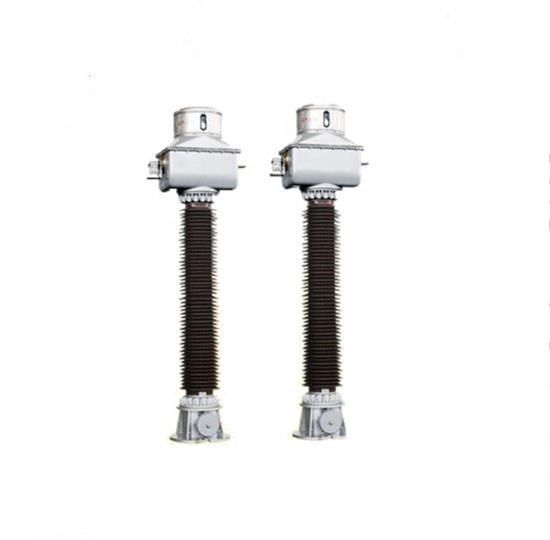

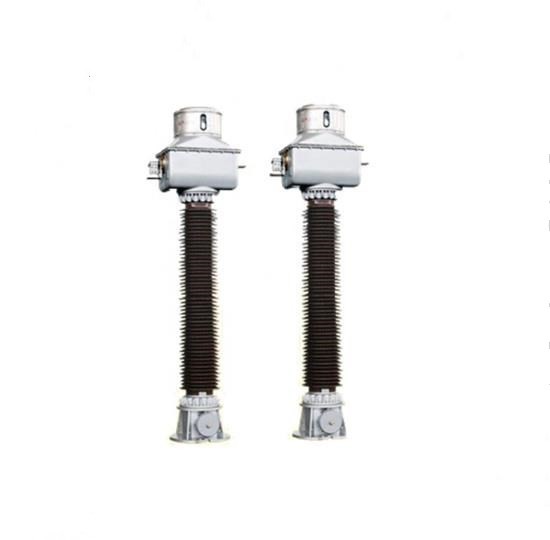

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz



Quick Detail:

3200A 1A CT 363kv current transformer protection class



Description

The secondary winding of AGU-type oil-immersed inverted current transformer is put into the aluminum profiling torus, secondary wire runs through aluminum cylinder connected with aluminum torus and into secondary terminal box of housing. Primary winding runs through secondary winding center, and the capacitive main insulation is wrapped on the aluminum profiling torus and cylinder. Transformer head is designed according to the main insulation shape by three dimensional profiling optimized designs. The stainless steel bellow at the top of head will compensate the oil volume and can be as pressure releasing device in case of accident. External insulator is made of high strength porcelain. The product should be filled with high quantity transformer oil. The product has the features of good appearance,advanced structure, excellent performance and reliable quality.

General parameter System frequency 50HZ or 60HZ
rated primary current 2×(300-2000)A
rated secondary current 1A or 5A
short thermal steady current(maximum) 63kA/3s
Dynamic steady current(peak value) 160kA
standard IEC,GB,ANSI or IEEE
accuracy class for measurement 0.2-1.0,0.2S,0.5S
accuracy class for protection 5P or 10P,5PR or 10PR,PX
accuracy class for special core TPS,TPX,TPY,TPZ
quantity of secondary winding as standard and the client's requirement
ambient temperature -45/50℃



3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 0

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 1

Shipping:

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

The standard procedure for making wooden case is as follows:

Receipt of information required for the type of goods to be wood barrel customers.
Measure and create original designs for customers.
Select the type of wood suitable for the requirements of the goods.
Determine the delivery time.
Check the wood barrel technique.
Handover confirmation of work efficiency.

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 2

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 3

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 4



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 5



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 6

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 7

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

3200A CT Current Transformer 363kv AGU Type Oil Immersed Inverted 50Hz/ 60Hz 8

Package

Set-wisely packing or member-wisely packing as per client's requirements.
