HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device



Quick Detail:Transmission line Inspection robot on the earth wire and conductor



Application Background

  • Intelligent monitoring device
  • Short video recording
  • HD image surveillance
  • Real-time video browsing
  • Support external sensor access
  • Timed/manual capture of live image uploads



Part  One The video monitoring system of transmission line

Transmission line channel visualization remote patrol system

  • Front end system
  • Networking
  • Master station system

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 0

The current situation and existing problems of traditional line visualization

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 1

System highlights

  • Sound and light caveat
  • Wire temperature measurement
  • "Three-span" channel visualization
  • Mobile interconnected
  • Advanced management features
  • Diversified monitor
  • Integrated monitoring

Front end system

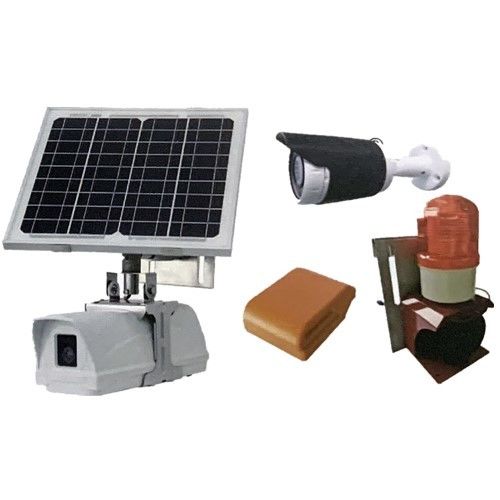

ZHY810Z intelligent monitoring device

ZHY810C intelligent monitoring device



ZHY860 intelligent visual monitoring device

ZHY880A video online monitoring device

ZHY830 site safety operation monitoring terminal



ZHY850 transmission line intelligent monitoring terminal

ZHY851 transmission pole tower body monitoring unit

Front-end feature highlights



ZHY810Z Intelligent monitoring device

Pixel: Support of 8 million (200 to 8 million adustable)

Solar Power Board  10 W

Weight    < 6 Kg



Features

Timed capture, manual capture, short video recording, real-time video browsing, access to intranet encryption, remote upgrade, 4G communication



Product advantages

  • Low cost and costly compression
  • Low power consumption, continuous operation for 30 days
  • Low traffic costs, more than ten yuan per month
  • Simple construction, 2 people / 10 minutes
  • Easy maintenance: module design



HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 2

ZHY810C Intelligent monitoring device

Pixel: Maximum support of 16 million(200 to 1 6 million adjustable

Solar Power Board 15 W

Weight < 7 Kg

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 3

Features

  • Short video recording
  • HD image surveillance
  • Real-time video browsing
  • Support external sensor access
  • Timed/manual capture of live image uploads

Design highlights and problem solving

  • Dual camera image monitoring, adjustable viewing angle, solve the problem of “look at the scene”
  • The host can perform channel visual monitoring, and the sub-camera is equipped with a night market function, which can focus on all-weather monitoring of the external damage of the transmission channel, and save cost by one machine.
  • External sound and light alarm module can remotely control light voice alarm
  • The external wire temperature measurement module can periodically return data

Night market function

  • In order to ensure real-time online monitoring of transmission line channels and surrounding environment, the sub-camera is equipped with night vision function, and the night vision effect example is as follows:

ZHY860 Intelligent visual monitoring device

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 4

Intelligent visual monitoring host

  • 16 million pixels
  • Real-time video browsing
  • Timed return photo
  • Front-end device picture,intelligent analysis,abnormal picture active,upload background
  • Remote parameter setting, OTA upgrade
  • The photo interval can be set from 1-60 minutes.
  • Automatic cruise
  • GPS positioning
  • Set internal temperature display
  • Angle adjustable: horizontal 0 °
  • ~ 360 ° adjustable, vertical -85° ~ 20 ° adjustable
  • 10 preset positions: can realize all-round visualization of line channels, towers, insulators, etc.

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 5

The main function



Front-end image intelligent recognition

The intelligent analysis and processing of the collected images identifies large-scale machines such as hanging towers, cranes, excavators, cement pump trucks, bulldozers, etc., which are likely to cause external damage in the line channels, and the hidden danger images are actively uploaded to the background server. Improve hidden danger identification and line inspection efficiency.

PTZ control

Combined with warning position and video browsing to achieve full-time on-site inspection of fixed-point timing

Real-time video browsing and recording

In view of the frequent occurrence of accidents in special transmission channels such as the “three-span” section, real-time monitoring and tracking in the event of an emergency, timely monitoring of the situation, timely recording, and preservation of evidence

Other functions

Timed photo, standard interface, GPS positioning, battery voltage detection / internal temperature detection.

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 6

ZHY880A video online monitoring device
Meet the requirements of Enterprise Interface B of Grid Video Surveillance

  • System and Interface, and support access to intranet unified video platform
  • Dynamically adjust resolution and frame rate for dynamic adjustment of backhaul
  • With night vision function, it can meet the needs of night monitoring. Whether night vision is turned on can be controlled  by remote monitoring and interface with unified video platform.
  • With 24-hour continuous recording function, the recording adopts the loop coverage mode (that is, the automatic recording of the early recording files after the storage space is full), the storage space can meet the historical recording requirements of more than 30 days.
  • The master station system can retrieve and record the time interval of the calling front end.
  • PTZ supports up, down, left and right movement and step, speed and other
  • controls, lens support zoom control
  •  Support NTP protocol timing

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 7

Networking scheme

In this scheme, the monitoring terminal transmits the line image data to the background server through the enterprise private line telecommunication network, through the enterprise gateway and the firewall, and the user views the line channel situation in the system software platform, and can view the image through the mobile phone WeChat, APP software. Data, which is convenient for monitoring center personnel to monitor the line situation in real time.

HD Online Monitoring System Of Transmission Line Intelligent Monitoring Device 8

Information extranet solution

In this solution, the monitoring terminal transmits the line image data to the information external network through the VPDN private network through the enterprise gateway and the firewall, and the user can view the line condition in the system software platform, and in the case that the information external network opens the Internet exit, Can also achieve image data viewing via mobile phone WeChat, APP software.

Power Supply System

A variety of power supply methods can be combined to provide power supply throughout the day,
providing reliable power supply for data acquisition systems and
monitoring systems in the tower.

Data Acquisition and Analysis System

High-performance acquisition host for data acquisition front-end, using sensors to analyzes and collects various surrounding data regularly (humidity, temperature, wind direction, etc.) through pre-set procedures sequence . The video probe can continuously monitor the surrounding environment in real time, and the foreground system processes the collected data and transmit it to the background control center in time through wired or wireless mode (GSM/GPRS). /CDMA) .
