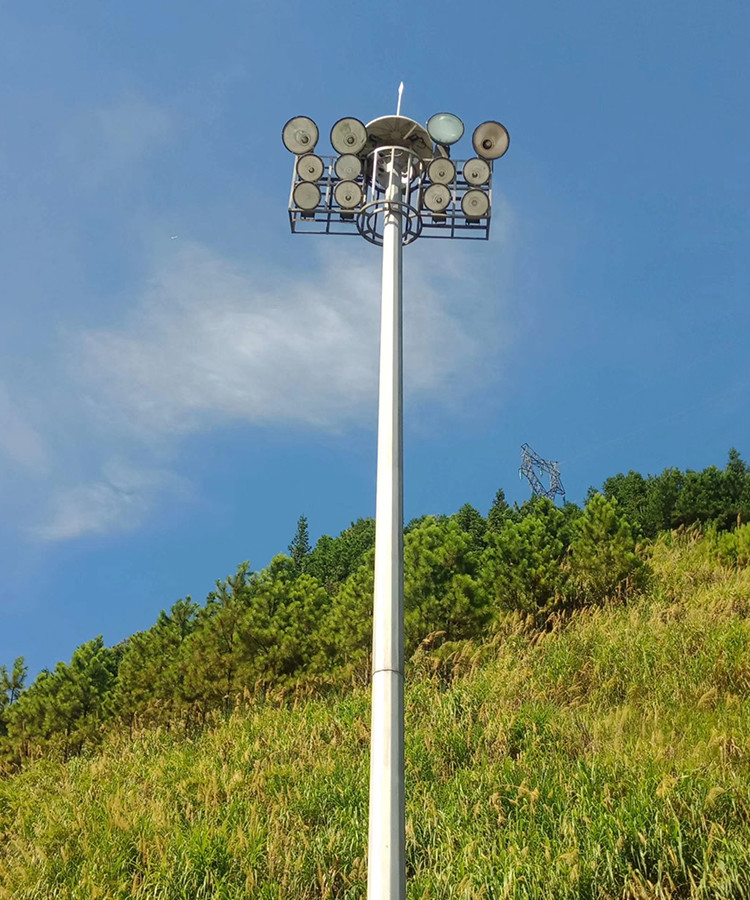

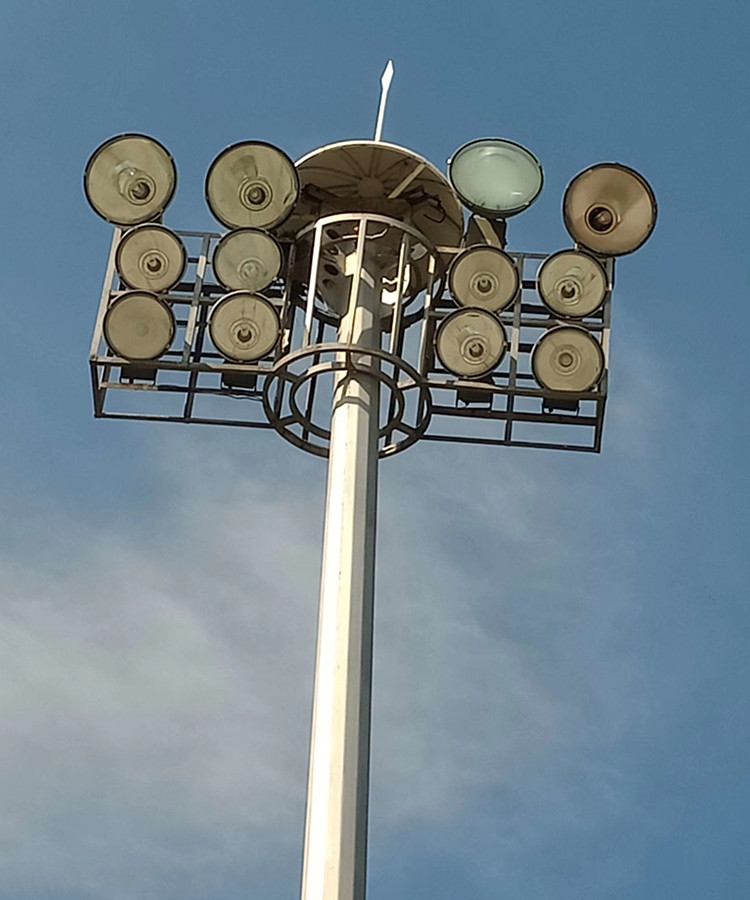

High Lumens Modular 400W LED High Mast Light For Stadium

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 2000 Ton per Month
Place of Origin: china Brand Name: China
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel Model Number: DINGLI

Detail Information

Material: Q345/Q235 Available Height: 5-80m
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Galvanization: Hot Dip Galvanization Painting: According To Clients' Request
Wall Thickness:: 1.8mm-14mm Warranty Time:: 2 Years
Platform:: 1-3 Life Time: 35 Years
Certification:: Iso9001:2008 Sgs Coc Suitable Place:: Hotel, Park, Business Street, Square, Station
High Light:

Modular 400W LED High Mast Light

,

Stadium 400W LED High Mast Light

,

400W high mast flood light

Product Description

High Lumens 400W Modular LED High Mast Light for Stadium



Quick Detail:

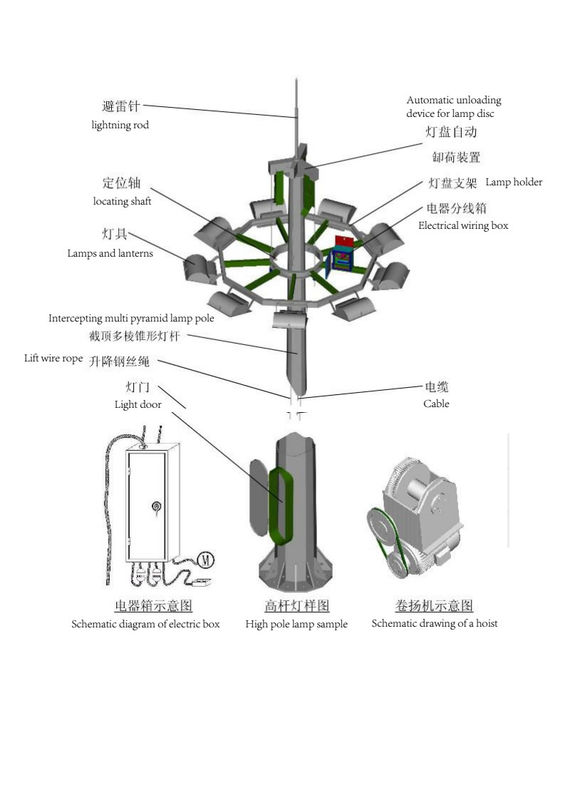

The configuration of high mast light:
1. The shape usually are dodecagon or octagonal conical pole, by high strength steel plate after cutting,

bending,automatic welding, the general height is 25m, 30m and 35, the maximum wind resistance design

of up to 60 meters / second.


2. In the functional framework, but also to decorative materials mainly to steel, steel pipe, lamp post, lamp

plate are hot dip galvanizing.


3. Electric lifting system consists of electric motor, winch, three sets of hot dip galvanized steel wire rope

and cable and so on.The inside of the lamp post is mounted with a lifting speed of 3 to 5 meters per minute.


4. The guiding and unloading system is composed of guide wheel and guide arm to ensure that the lamp plate

does not move transversely.during the lifting process. When the lamp plate is in place, the lamp plate can be

automatically dropped and locked by the hook.


5. lighting electrical system is equipped with 6 to 24 lamps, 400 W, 1000 W, metal halide (white light), light and

floodlight.The computer time controller can automatically control the switching time, part lighting or full illumination,


6. lightning protection system: the lamp top is equipped with 1.5 meters long lightning rod,

the underground foundation is equipped with 1 1 meter long grounding wires and is welded with the underground bolt.

Data Sheet:

Light source height from the ground 3m-30m
Material Hot rolled steel,Q235,Q345
Length of one part Within 16m once forming without slip joint
Thickness 2.5mm-20mm
Pole's Shape Can be made Single/Double arm
Power 150W-400W for HPS light or 30W to 180W LED light
Painting color (RAL)Color card or refer to client's requirement
Surface treatment Galvanized with powder-coated
Quality Control According to ISO9001-2008 and CE requirements



Classification of high pole lamps
Generally can be divided into lifting type and non-lifting type. The height of the lifting main pole is

generally more than 18m, and the electric lifting operation is convenient. After the lamp tray is raised

to the working position, the tray can be automatically detached, hung in the ditch, and the wire rope

can be unloaded.
The lifting type high-pole lamp is provided with two lifting control modes of manual and electric, so

that the lamp tray
It can be safely and reliably lowered to 2.5 meters above the ground for easy maintenance. The length

of the lead-out wire of the manual remote control device is 10m, and the operator can remotely control

the lifting of the lamp panel at 5m, so as to ensure the personal safety of the operator
All The lift-type high-pole lamp is also equipped with a spare cable. When the lamp tray is lowered to a

proper position, one end of the cable is inserted into the socket of the electrical control system and the

other end is inserted into the junction box on the lamp tray, so that the lamp tray can be directly supplied

with electricity and the lamps and lanterns can be overhauled.
The sealing grade of all lamps and lanterns of the lift-type high-pole lamp is IP65 international standard

to prevent dust and rain from entering and the service life of the bulb. The materials of lamps and lanterns

are generally aluminum alloy plates and stainless steel with good corrosion resistance

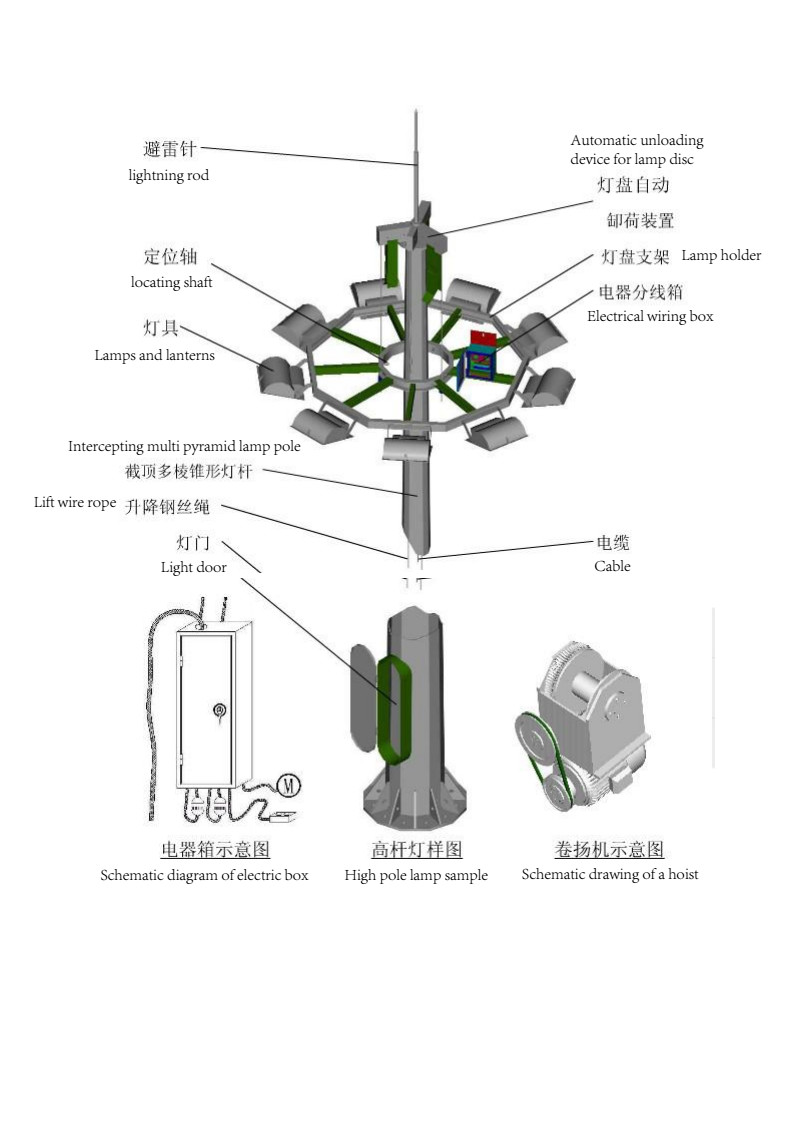

Configuration:
1.

The lamp post is divided into eight - edge, twelve - edge and eighteen - pyramid - shaped posts according to the diameter. The posts are made of high-strength high-quality steel plates through shearing, bending and automatic welding. Generally, the height of the posts is 20, 25, 30, 35, 40 and other specifications. The designed maximum wind resistance can reach 60m / sec. Each specification consists of 2 to 4 sections of splicing. Flanged steel chassis is provided.



2.

The main function is frame structure, while the main decorative materials are steel pipes and steel pipes. The lamp post and plate are treated with hot dip zinc.



3.

The electric lifting system consists of a motor, a hoist, three sets of wire ropes and cables, etc. The lamp post is installed in the body and the vertical speed is 3 to 5 meters per minute.



4.

The guiding and unloading system consists of guiding wheels and guiding arms to ensure that the lamp tray does not move laterally during the lifting process and can automatically fall off and be locked by hooks when the lamp tray rises to the right position.



5.

The lighting electrical system is equipped with 6 - 36 gold halogen, sodium, LED and other light source lighting and floodlights, and the computer time controller can automatically control the time of switching lights and partial lighting or full lighting.



6. Lightning protection system: 1.5 meter lightning rod is installed on the top of the lamp, and 1 meter long ground wire is installed on the underground foundation and welded with the underground bolt.



Applications:
High Lumens Modular 400W LED High Mast Light For Stadium 0



High Lumens Modular 400W LED High Mast Light For Stadium 1

High Lumens Modular 400W LED High Mast Light For Stadium 2



Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer

by our well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians

to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit

our company anytime.



Service

Experienced senior engineers and technical staff keeping on learning can help perform design

accurately and timely and ensure quality, reliability and innovation of products. With the help of the

latest advanced design software of PLS-Pole and AutoCAD, experienced engineers of the Company

can design schemes meeting complex landform and environment, so as to meet various needs of

customers.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the

Company be available of designing accurately and timely and ensuring quality, safety and easy

construction. On the basis of an excellent design team, the Company further configures software of

PLS-Tower, AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the

software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the

engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard,

which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure

your project delivers as specified. What’s more, he/she communicates with you every step of the way.





International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more

than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the

project.

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile,

Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has

built production line in Quito and warehouse for transmission line and distribution network in Ecuador,

Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide

technical consultant and design service within our scope of work. For Quito tower design center,

most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material

standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

4. Package

Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to

avoid the damage on the galvanization of the pole ,anyway also can following by client required , The

loading capacity of 40HC or OT an be calculated calculation base on the client actually specification and data.

High Lumens Modular 400W LED High Mast Light For Stadium 3

Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center

Cambodia

Cambodia Phnom Penh Factory

Spain

Madrid (Spain) Sales and Service Center

Dakar, Senegal

Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse

Quito, Ecuador

Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse

Lima, Peru

Lima (Peru) Sales and Service Center

Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse

Santiago, Chile

Santiago (Chile) Sales and Service Center

Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center



High Lumens Modular 400W LED High Mast Light For Stadium 4

 International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly

capacity of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will

be completed in our factory, in this case, it will be avoided two times loading during transportation,

we are doing our best to protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are

doing better to avoid the missing parts problem

High Lumens Modular 400W LED High Mast Light For Stadium 5

Customer Visit

Clients from Spain visited Dingli for factory inspection, we talked about the key issues faced right now,

and found ways to solve it together. They set a high value on this cooperation.

High Lumens Modular 400W LED High Mast Light For Stadium 6



Product Testing:

On December 16, 2018, the steel poles FAT test for project 20kv transmission line in DR-Congo

were carried out in our company's

steel pole test workshop. Participating in the test were representatives of the Spanish EPC and

representatives team from the

Democratic State Grid of DR- Congo. A total of six representatives came to witness the results of

the FAT test. There had 6

types of steel pole were carried out the FAT test. Items of FAT test includes: Material Test, Proofing

Test and Loading Test.

Customers are very satisfied with the test results of our products. The higher test results show that

the product quality of

our steel poles is very reliable.
