Mono Steel Pole Tower For Transmission Line Steel Structure Wireless Mobile Signal Tower
Contact Person : Julia
Phone Number : 86-18037871307
WhatsApp : +8618037871307
|Minimum Order Quantity :||Negotiation||Price :||Negotiation|
|Packaging Details :||Standard National Packing Method||Delivery Time :||Depends on the quality of client|
|Payment Terms :||30% advanced payment , 70% balance payment before shipment or negociatable, T/T||Supply Ability :||2000 Ton per Month|
|Place of Origin:||china||Brand Name:||China|
|Certification:||ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel||Model Number:||DINGLI|
|Material:||Tube Steel ASTM A36 A572 Gr50/S275JR S275JR.||Available Height:||5-200M|
|Surface Coating:||Hot Dip Galvanization Or Painting ASTM A123/ ISO 1461||Wind Speed:||0-300KM/H|
|Galvanization:||Hot Dip Galvanization||Power:||10 KV ~550KV|
|Model Number:||3 Legs Tube Tower||Type:||Telecommunication Tower|
|Lifetime::||More Than 20 Years|
3 Leg Steel Pole Tower,
60m Legged Steel Pole Tower,
3 Leg hot dip galvanized pole

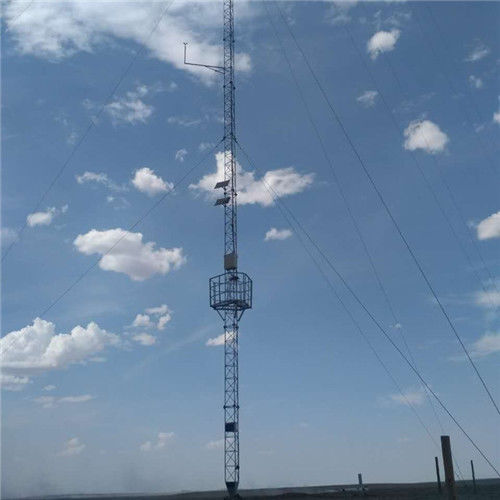

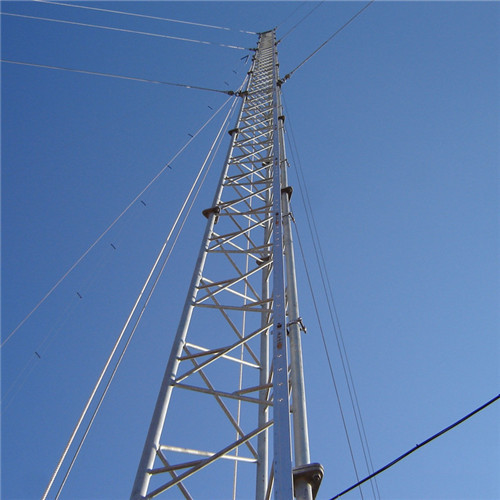

3 Leg Legged Tube Pipe Tubular Self Supporting Steel Hot Dip Galvanized 60m Telecom Telecommunication
Communication Cell Tower
|1. Design Code||TIA/EIA-222-G/F|
|2. Grade||Mild Steel||High Tensile Steel|
|GB/T 700:Q235B, Q235C,Q235D||GB/T1591:Q345B, Q345C,Q3455D|
|ASTM A36||ASTM A572 Gr50|
|EN10025: S235JR, S235J0,S235J2||EN10025: S355JR, S355J0,S355J2|
|3. Design Wind Speed||Up to 250 km/h|
|4. Allowable deflection||0.5 ~1.0 degree @ operational speed|
|5. Tension strength (Mpa)||360~510||470~630|
|6. Yield strength (t≤16mm) (Mpa)||355||235|
|7. Elongation (%)||20||24|
|8. Impact strength KV (J)||27(20°C)---Q235B(S235JR)||27(20°C)---Q345B(S355JR)|
|Bolts & Nuts|
|9. Grade||Grade 4.8, 6.8, 8.8|
|10. Standards for mechanical properties|
|10.1 Bolts||ISO 898-1|
|10.2 Nuts||ISO 898-2|
|10.3 Washers||ISO 6507-1|
|11. Standards for Dimensions|
|11.1 Bolts||DIN7990, DIN931, DIN933|
|11.2 Nuts||ISO4032, ISO4034|
|11.3 Washers||DIN7989, DIN127B, ISO7091|
|12. Method||CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)|
|13. Standard||AWS D1.1|
|14. Method of marking of the members||Hydraulic Press Stamping|
|15. Galvanization standard of steel sections||ISO 1461 or ASTM A123|
|16. Galvanization standard of bolts and nuts||ISO 1461 or ASTM A153|
|17. Factory test||Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Production Process And Quality Control
1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staff.
4. Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure
our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.
7. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers
8. Special discount and protection of sales are provided to our distributor.
9. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20
years, competitive with good quantity.
Experienced senior engineers and technical staff keeping on learning can help perform design accurately and
timely and ensure quality, reliability and innovation of products. With the help of the latest advanced design
software of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes meeting
complex landform and environment, so as to meet various needs of customers.
In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company
be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis
of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other
CAD and updates the software in real time to ensure the software is the latest.
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant
and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.
The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and
avoid the replacement on the profiles to save the working time.
Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your
project delivers as specified. What’s more, he/she communicates with you every step of the way.
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
Technical support on pre-sales stage.
DINGLI has own survey and engineering company with more than
100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,
Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production
line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with
common use spare parts.
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical
consultant and design service within our scope of work. For Quito tower design center, most of the engineers
are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce
the weight, and avoid the replacement on the profiles to save the working time.
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoid the
damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of
40HC or OT an be calculated calculation base on the client actually specification and data.
