Galvanized Electrical Steel Transmission Line Poles 33kv

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 5000 Pack/Packs per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: Galvanized steel poles

Detail Information

Place Of Origin: China Model Number: Galvanized Steel Poles
Type: Galvanized Steel Poles Design: Customiszed
Surface Treatment: Hot Dip Galvanization Welding Standard: AWS D 1.1
Standard: ISO Galvanization Standard: ASTM A123
Shape: Conoid ,multi-pyramidal , Columniform,polygonal Or Conical
High Light:

Electrical Steel Transmission Line Poles

,

33kv Galvanized Power Transmission Pole

,

ASTM A123 Transmission Line Poles

Product Description

High Quality Transmission Tower Steel Tubular Poles Tower



Product Description

Type

Straight Pole ,Tensile Pole ,Turn Pole

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal , Columniform,polygonal or conical



Material

Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Tolerance of dimension

+- 2%

Power

10 KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg applied to 50cm from the top pole

Marks

Nane plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour . 30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We have past flaw testing. Internal and external double welding makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages

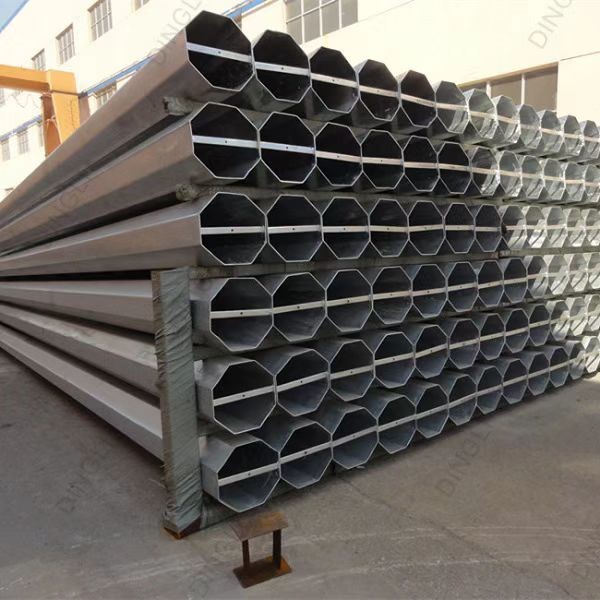

Galvanized Electrical Steel Transmission Line Poles 33kv 0

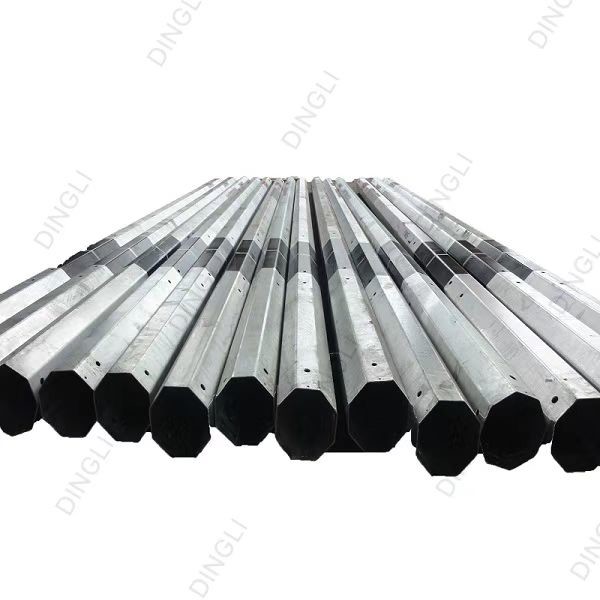

Galvanized Electrical Steel Transmission Line Poles 33kv 1
