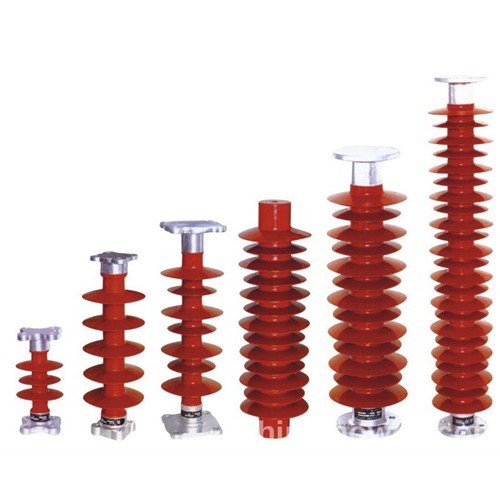

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 0

Total Solution the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

High quality porcelain composite post and disconnector insulators for 145kV outdoor insulator fitting



Composite Suspension Insulator
Good electrical specification,strong mechanical strenght,tensile bending intension of the epoxy glass fiber rod of internalload bearing is double than normal rolled products,8-10times of high strenght porcelain material,can effecti vely improve the reliable of safe operation.
Fine anti-pollution,strong prevent flash accident and the wet withstand voltage and pollution wishstand voltage is 2-2.5times than the same creepage distance porecelain,insulator and not to cleanup,cansafe operate in the serious pollution areas.
Composite insulator series products,which the mechanical performance and electric performance are better than porcelain insulator and the tolerance of safe operation is big and it is the renew product for electric power line.





Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 1

1. Shed connected with core by integral foring

2. The thinkness of housing > 3mm,unifirm to IEC Standard

3. Acid resistant,hight temperature resistant of epoxy fiberglass core

4. Metal end fittings,core and sheds connected by new crimping process

5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging the service life





Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 2



Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 3

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 4

Product Advantage:

① Light weight:

It's small in size and in light weight, it is about 1/5 to 1/9 of the porcelain insulator in the same grade voltage, so it' sconvenient for transportation and installation.



② Good anti-pollution

Composite insulator has a good anti-pollution performance, so it can operate safely in polluted areas, it requires neither annual cheaning nor maintaining at zero.

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 5



③ High antifouling property

Good aging resistance performance, strong ability of anti-pollution flashover and good electric corrosion resistance, can ensure that the internal insulation core will not be affected by moisture.

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 6

4. Strong shock resistance

Composite insulators have good brittleness resistance, strong shock resistance and there's no brittle fracture accident. Composite insulators are interchangeable with ceramic insulators.

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 7

⑤ Stable Performance

The composite insulator has high mechanical strength, reliable structure and stable performance, which provides a guarantee for the safe operation of the line.

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 8

Application:

suitable for multiple industries, widely used in power grid, petro chemical, wind power, machinery, construction, communications and other industries.

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 9



Related Product:

Polymer line Post Insulator / Composite Tensile Insulator / Composite Suspension Insulator



Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 10



Composite Pin Insulator / Composite Post Insulator

Outdoor Substation Post Insulator Porcelain Composite Post Disconnector Insulators 11
