Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 12000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: FZSW-110/8

Detail Information

Material: Composite Polymer, Silicone Rubber Type: Insulator
Model Number:: FZSW-110/8 Certification: ISO9001
OEM: Available Color: Red,grey And Customers Request
Surface: Vulcanization Rated Voltage: 110KV
Tensile Strength: 8KN End Fitting Type: Post Type
High Light:

220kv Electrical Substation Post Insulator

,

Solid Core Substation Post Insulator

,

Polymer Substation Post Insulator

Product Description

High Voltage Polymer Distribution Line Solid Core 220kv Electrical Substation Post Insulators



Quick Detail:

OVERVIEW:

Composite polymer insulator is composed of epoxy glass fiber core rod, silicon rubber shed and metal parts.
Composite polymer insulator is of high strength and light weight. A synthetic insulator is 1/5 of that of porcelain

insulator, but the circum-tensile strength of insulator is very high. Generally, it can be above 6000mpa.
Its umbrella skirt is an organic polymer structure of silicone rubber.Therefore, it has a strong anti-pollution

performance.

The product has reliable structure and will not damage the core rod. It belongs to the rod-shaped insulation

structure.

Polymer post Insulator Product Parameter
Type Rated voltage(KV) Specifified bending load Section length(mm) Min Arcdistance(mm) Leakage distance (mm) Lightning impulse withstand BIL(KV) Power frequency withstand(wet) (KV)
FZSW-11/4 11 4 265 155 430 75 42
FZSW-24/8 24 8 395 280 760 150 65
FZSW-33/6 33 6 430 320 870 185 80
FZSW-36/6 36 6 445 335 920 185 95
FZSW-66/8 66 8 850 585 2570 400 130
FZSW-66/10 66 10 860 720 2539 350 160
FZSW-72.5/12.5 72.5 12.5 760 590 1950 400 185
FZSW110/10 110 10 1050 885 3330 550 185
FZSW-126/8 126 8 1220 1055 3500 550 185
FZSW-132/10 132 10 1500 1300 3600 765 430
FZSW220/10 220 10 2440 2200 7060 1000 395

Product Display

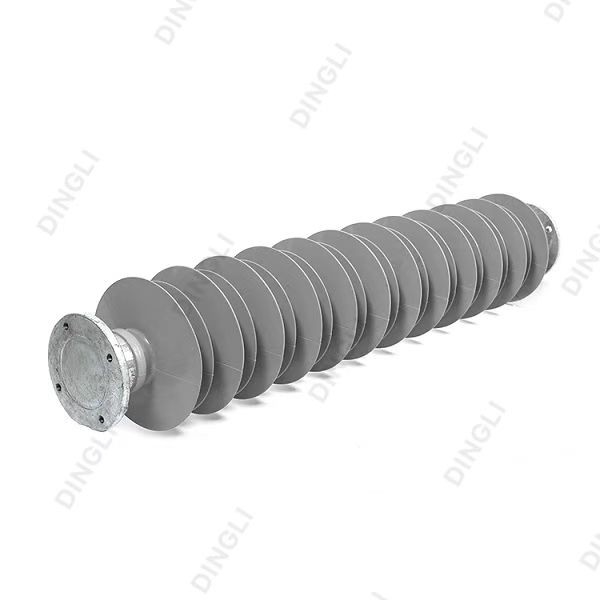

Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line 0

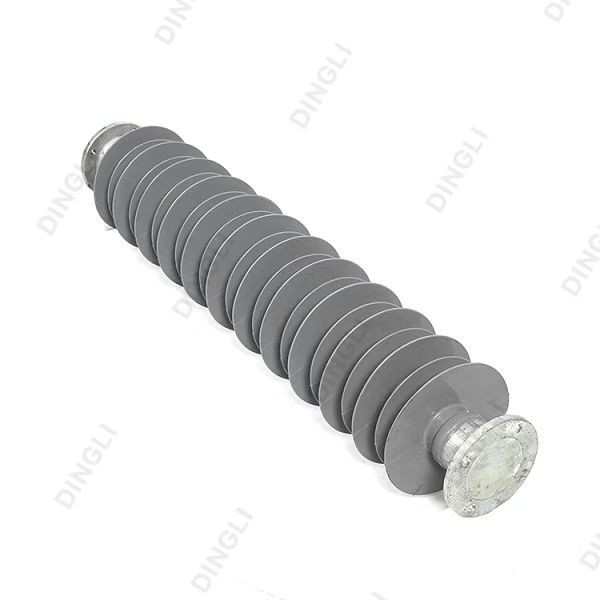

Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line 1

Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line 2

Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line 3

Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line 4

Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line 5

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

Solid Core 220kv Electrical Substation Post Insulator Polymer Distribution Line 6
