High Quality Polymer High Voltage 220kv Silicone Composite Insulator

Product Description





                                               Product  Description







Main technical parameters



Type	No. Of Sheds	“X” Length inches (mm)	Diameter Inches (mm)		Leakage Distance Inches (mm)	Dry Arc Distance inches (mm)	Lighting withstand voltage	Wet power frequency voltage	SML Specified Mechanical Load(KN)
			D	d
FPQ-10/5.0	3	285	123	93	450	208	110	40	5.0
FPQ-24/10.0	5	320	168	/	800	206	170	70	10.0
FPQ-24/12.5	5	252	165	135	650	165	170	65	12.5
FPQ-36/12.0	14	480	130	115	1200	356	230	90	12.0
FPQ-36/10.0	11	507	132	122	1100	356	230	90	10.0





(1)Small volume , light weight , sheds have good elasticity , not broken , con venient transportation

and installation , economy .

(2)High mechanical strength FRP ROD has high tensile strength , small size , light weight , high

tensile strength .

(3)High antifouling property , good aging resistance performance , high anti pollution flashover

voltage , good electric corrosion resistance .

(4)Easy installation , greatly reduce mainternance charges and manual labor intensity .

(5)Simple production process , short delivery time











































1. Shed connected with core by integral foring

2. The thinkness of housing > 3mm , unifirm to IEC Standard

3. Acid resistant , hight temperature resistant of epoxy fiberglass core

4. Metal end fittings , core and sheds connected by new crimping process

5. Hot galvanization and technology of rareearth aluminum coating to avoid coating

shedding prolonging the service life



Product characteristics

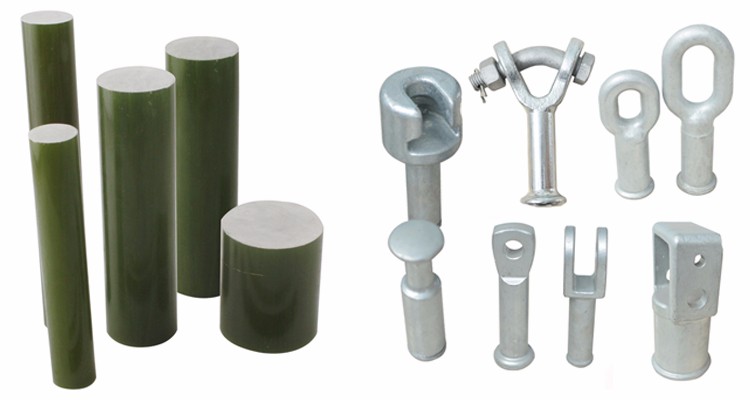

1.No flaw , crack in the surface and interior , each bar color uniform(green or light yellow) .

2.Can withstand the sawing , milling,planning , drilling , lathe and other mechanical processing .

3.Internal thread can be tapping with screw tap , external thread can be polished , but not allowed

to bear overload .

4.It has good damping , creep resistance , fatigue resistance , fracture resistance , high temperature

resistance , stress corrosion resistance etc .



Testing Equipment

We have a strict quality assurance system , first-class production equipment and inspection instrument , and

multiple technical talented persons . The quality of our products accords with IEC , ISO , ASTM , ANSI , GB/T ,



Q/G-DW , JB/T , DL etc .



Application

This product is suitable for high voltage line facilities , technical reform of city network , polluted area , power

facilities , line use , high voltage line hard jumper , high voltage transmission lines , high speed railway and city

light rail traffic construction , ect .
