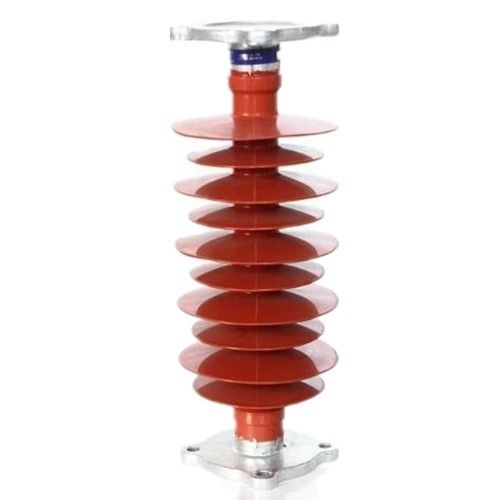

Electrice Power Substation Post Insulator Stainless Steel Inner Materials

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Steel, Porcelain Post Insulator, Type: Insulator
Model Number: FZSW-110/8 Certification: ISO9001/CE/ROHS,KEMA Test Report
Usage: Electrice Power Color: Red,grey And Customers Request
Rated Voltage: 66KV Product Name: Substation Lightning Arresters Manufacturers Of 66kV Surge Arrester
Inner Materials: Stainless Steel,external Galvanizing Application: Electronic Equipment
High Light:

composite post insulator

,

high voltage insulators

Product Description

Electrice Power Substation Post Insulator Stainless Steel Inner Materials

Quick Detail:

High Voltage Substation Lightning Arresters Manufacturers of 66kV Surge Arrester

OVERVIEW: High voltage isolator switch

Item Technical parameter
Rated Voltage kV 72.5 123 145 245
Rated Current A 1250 1600 2000 2500 3150 4000
Rated Short Time withstand current and Time kA/s 25~50/4
Rated Peak withstand current kA 63~125
1min power frequency withstand voltage (effective value) kV To earth 140 230 275 460
To phase 140 230 275 460
Across Isolating DS 180 300 315 605
Lightning Impulse wishstand voltage To earth 325 550 650 1050
(peak value) kV To phase 325 550 650 1050
  Across Isolating DS 405 650 750 1200
Rated mechanical terminal load N Level of lateral load 750 1500 1500 2000
Level of vertical load 500 1000 1000 1500
Vertical 750 1000 1000 1250
Capacity and Inductive Ability (open and close) Capacity Current A 1
Inductive Current A 0.5
Max Man Operative Moment N. m 200
Motor Drive operating mechanism control voltage V AC220; DC110, 220
Motor Drive operating mechanism motor voltage V AC220, 380; DC110, 220




Description of isolator switch

GW16-72.5~245 semi pantograph disconnector Characteristics:

It has the property of compact structure, advanced, clean appearance, beauty, Reliable property, economical.

After tripping, the vertical contact don't take up the space, especially adapt to the site that the entering line and exit line vertical different height.
Terminal block and conductive rod is made by casting aluminum alloy and aluminum alloy section, having the advantage of high-intensity,
good flowing and good anti-corrosion.

Adapt to site's different laying way: One Line laying, 45° Laying, 135° Laying and so on
In the galvanic circle, the section is the combination structure made by screw fix linking, having the good property of stable flowing, high reliability, simple change way and convenient adding volume way.
In the galvanic circle, the contact and finger is made by T2Y pure copper tap whose connecting part is coated by 30μ M silver.
Finger spring is made by the stainless steel and its design is the inside hiding and outside press structure which is convenient for testing and changing
All the operating rod and linking rod are supplied by manufacturer, which is convenient for loading, adjusting and testing.
It can be supplied as a whole above the ground according to user's requirement.



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



Electrice Power Substation Post Insulator Stainless Steel Inner Materials 0

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Electrice Power Substation Post Insulator Stainless Steel Inner Materials 1



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Electrice Power Substation Post Insulator Stainless Steel Inner Materials 2

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.
