36kv 69kv Composite Substation Line Post Insulator Transmission

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 12000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Model Number: FZSW3-33/5

Detail Information

Certification: ISO9001:2015 Material: Composite Polymer, Silicone Rubber
Type: Insulator Model Number:: FZSW3-33/5
OEM/ODM: Available Color: Red,grey And Customers Request
Application: High Voltage Rated Voltage: 12-126KV
Tensile Strength: 4-16KN Usage: Electrice Power
High Light:

36kv Substation Line Post Insulator

,

69kv Substation Line Post Insulator

,

69kv insulator line post

Product Description

36kv 69kv Transmission Composite Substation Line Post Insulator



Quick Detail:

products specification
Product code

Rated voltage

(KV)

Rated bending load(KN)

Structural height

(mm)±10

Insulation distance

(mm)

Minimum nominal creepage distance

(mm)

Full-wave impulse impulse withstand voltage

(KV)

1 min wet

Power frequency withstand voltage

(KV)

FZN4-12/4L(IEC) 12 4 215±10 125 330 75 45
FZSW4-12/8 12 8 265±10 155 430 75 45
FZSW-35/6 35 6 400±10 290 840 185 80
FZSW3-40.5/5(IEC) 40.5 5 445±10 335 920 185 80
FZSW4-40.5/6 40.5 6 450±10 335 920 185 80
FZSW4-40.5/10 40.5 10 450±10 335 1400 185 80
FZSW-66/5L 66 5 790±10 650 2230 400 130
FZSW-72.5/10 72.5 10 760±10 585 1700 400 130
FZSW-72.5/9L 72.5 9 790±10 650 1950 400 130
FZSW-72.5/12.5 72.5 12.5 760±10 590 1950 400 185
FZSW-110/8 110 8 1220±10 1055 3100 550 185
FZSW-126/10 126 10 1220±10 1055 3500 550 185
FZSW-126/16 126 16 1220±10 1010 3500 550 185

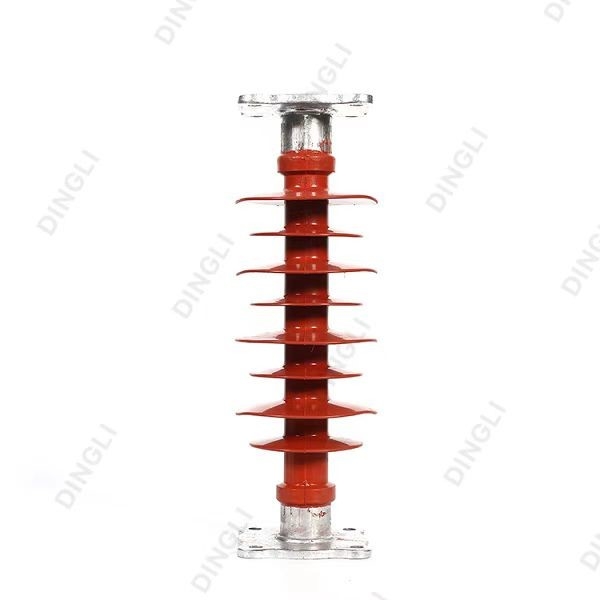

36kv 69kv Composite Substation Line Post Insulator Transmission 0

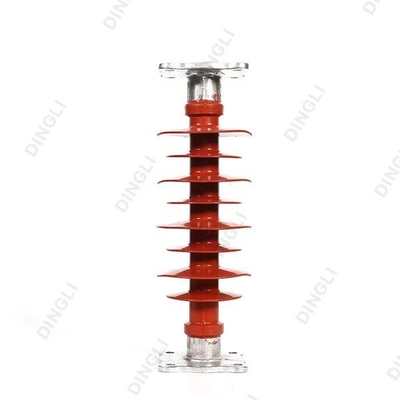

36kv 69kv Composite Substation Line Post Insulator Transmission 1

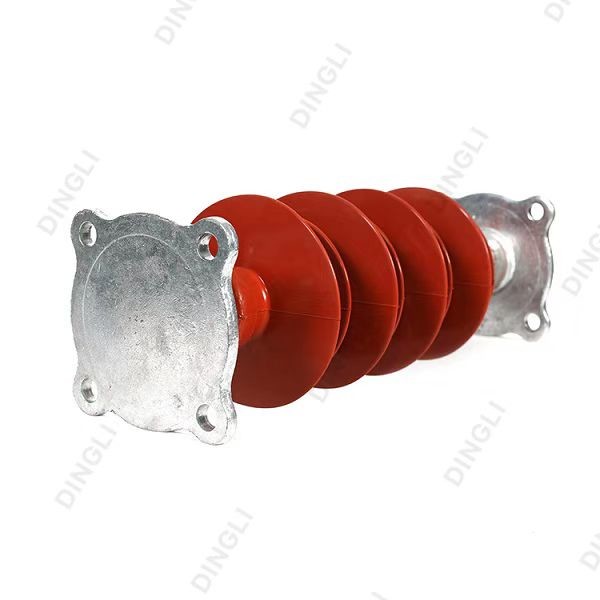

36kv 69kv Composite Substation Line Post Insulator Transmission 2

36kv 69kv Composite Substation Line Post Insulator Transmission 3

36kv 69kv Composite Substation Line Post Insulator Transmission 4

36kv 69kv Composite Substation Line Post Insulator Transmission 5

36kv 69kv Composite Substation Line Post Insulator Transmission 6

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

36kv 69kv Composite Substation Line Post Insulator Transmission 7















































1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more

than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity

projects covering survey, design, manufacture, complete equipment supply, construction, operations,

maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated

in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

36kv 69kv Composite Substation Line Post Insulator Transmission 8















































Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and construction,

AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica

material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30%

of the company's main revenue. We have provided high-quality products and services to more than 100 customers in

33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and

on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.

36kv 69kv Composite Substation Line Post Insulator Transmission 9

















































Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.
