Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Composite Polymer, Silicone Rubber Insulator Type: Insulator
Model Number:: FZSW-110/8 Certification: ISO9001/CE/ROHS
Usage: Electrice Power Color: Red,grey And Customers Request
Rated Voltage: 110KV Product Name: 145kv 150kv Composite Electric Pole Post Insulator
Inner Materials: Stainless Steel,external Galvanizing Surface:: Vulcanization
High Light:

post type insulator

,

high voltage insulators

Product Description

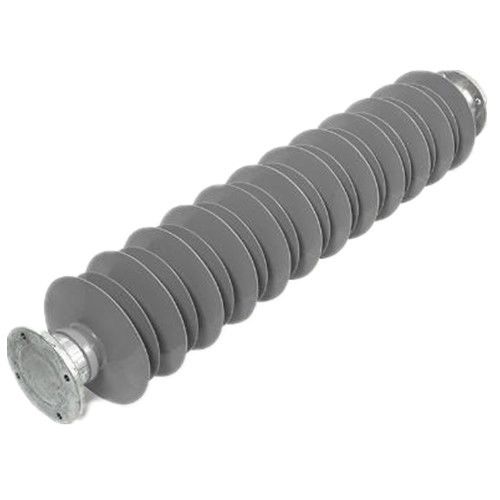

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv

Quick Detail:

Higher tensile customized electrical substation 145kv 150kv composite electric pole post insulator

OVERVIEW:

Composite polymer insulator is composed of epoxy glass fiber core rod, silicon rubber shed and metal parts.
Composite polymer insulator is of high strength and light weight. A synthetic insulator is 1/5 of that of porcelain insulator, but the circum-tensile strength of insulator is very high. Generally, it can be above 6000mpa.

Its umbrella skirt is an organic polymer structure of silicone rubber.Therefore, it has a strong anti-pollution performance.

The product has reliable structure and will not damage the core rod. It belongs to the rod-shaped insulation structure.

Polymer post Insulator Product Parameter
Type Rated voltage(KV) Specifified bending load Section length(mm) Min Arcdistance(mm) Leakage distance (mm) Lightning impulse withstand BIL(KV) Power frequency withstand(wet) (KV)
FZSW-11/4 11 4 265 155 430 75 42
FZSW-24/8 24 8 395 280 760 150 65
FZSW-33/6 33 6 430 320 870 185 80
FZSW-36/6 36 6 445 335 920 185 95
FZSW-66/8 66 8 850 585 2570 400 130
FZSW-66/10 66 10 860 720 2539 350 160
FZSW-72.5/12.5 72.5 12.5 760 590 1950 400 185
FZSW110/10 110 10 1050 885 3330 550 185
FZSW-126/8 126 8 1220 1055 3500 550 185
FZSW-132/10 132 10 1500 1300 3600 765 430
FZSW220/10 220 10 2440 2200 7060 1000 395
We can customize products according to the parameters and drawings required by customers



Product Advantage:

① Light weight:

It's small in size and in light weight, it is about 1/5 to 1/9 of the porcelain insulator in the same grade voltage, so it' sconvenient for transportation and installation.

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 0

② Good anti-pollution

Composite insulator has a good anti-pollution performance, so it can operate safely in polluted areas, it requires neither annual cheaning nor maintaining at zero.

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 1



③ High antifouling property

Good aging resistance performance, strong ability of anti-pollution flashover and good electric corrosion resistance, can ensure that the internal insulation core will not be affected by moisture.

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 2

4. Strong shock resistance

Composite insulators have good brittleness resistance, strong shock resistance and there's no brittle fracture accident. Composite insulators are interchangeable with ceramic insulators.

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 3

⑤ Stable Performance

The composite insulator has high mechanical strength, reliable structure and stable performance, which provides a guarantee for the safe operation of the line.

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 4

Application:

suitable for multiple industries, widely used in power grid, petro chemical, wind power, machinery, construction, communications and other industries.

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 5



Related Product:

Polymer line Post Insulator / Composite Tensile Insulator / Composite Suspension Insulator



Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 6



Composite Pin Insulator / Composite Post Insulator

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 7



Production and Quality Inspection

Composite Insulator
Hardware cleaning and drying, mandrel polishing
Pressure welding connection
Preheat degreasing coating coupling reagent
Integral injection seal molding
External inspection and renovation
Post cure
Predelivery test
Nameplate on qualified products
Product packaging and warehousing



Quality Inspection Process:

Material Incoming Inspection Items
a: Strong light test (every piece)
b: Porosity and warter diffusion test
c: Power frequency withstand voltage inspection
d: Tension force loading inspection

Inspection:
a: 50% rated mechnical load tensile test
b: 50% rated mechnical load bending tes
c: 50% rated mechniacl load torsinon test
d: Power frequency with stand voltage inspection

Sampling Inspection
a: Leakage current testing
b: The comparative and the proof tracking inspection
c: Lmpulse endurance test
d. lighting full-wave impulse test
e: Mechnical tensile test broking test



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

Higher Tensile Composite Electric Pole Insulators Used In Substation 145kv 150kv 8
