11kV Porcelain Ceramic Substation Post Insulator High Voltage

Product Description

11kV High Quanlity Porcelain Ceramic Substation Post Insulator



Quick Detail:

An insulator is a material or method that restricts the transfer of either heat or electricity. In the case of heat,

thermal insulators work by reducing the rate heat can travel through a space. Generally, they use specific

materials and will keep heat-carrying matter from moving. In the case of electricity, electrical insulators confine

an electric current to a designated path. They typically work by using a material with many outer elections,

a condition that will cause low electrical conductivity.

Drawings

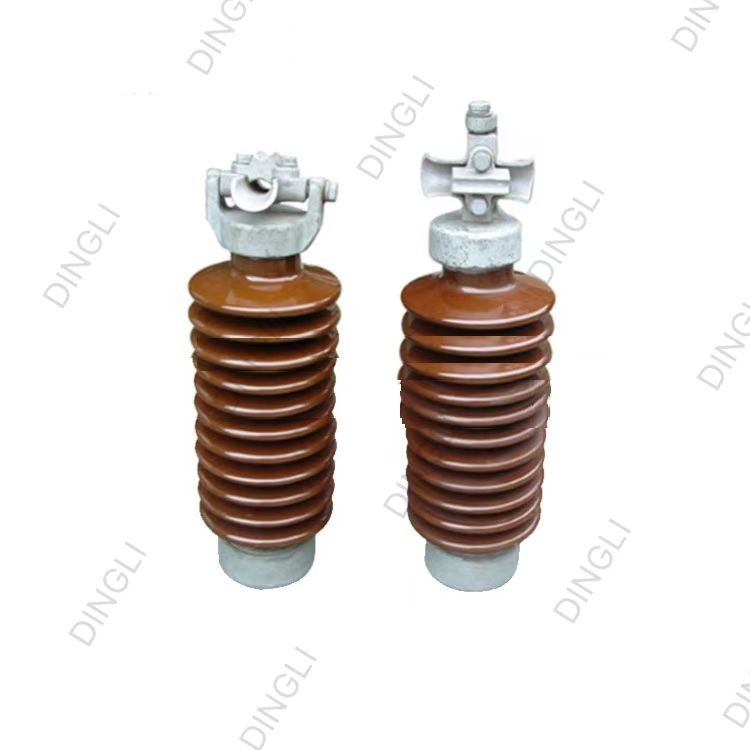

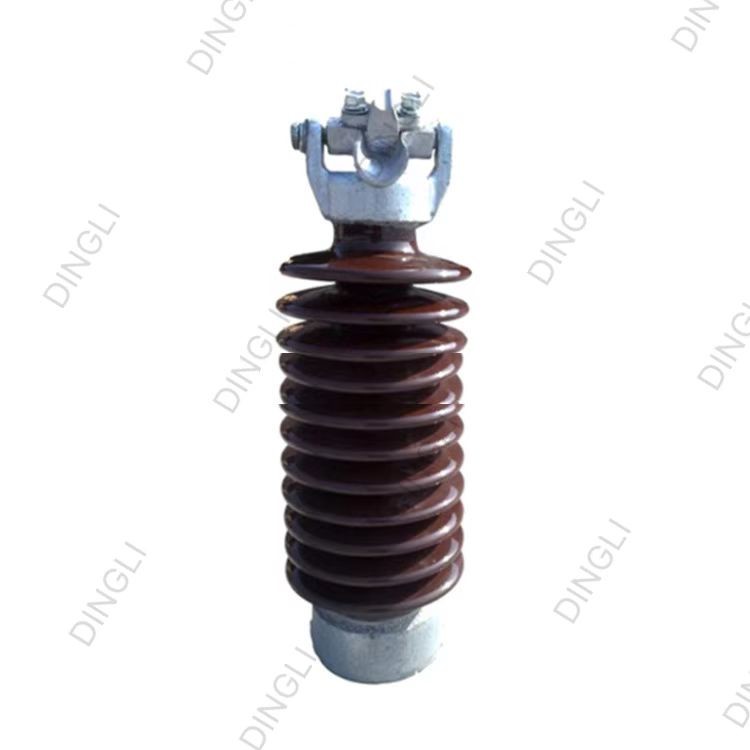

Product display

Specification

ANSI CLASS	With long stud	57-1L	57-2L	57-3L	57-4L	57-5L
	With short stud	57-1S	57-2S	57-3S	57-4S	57-5S
Creepage Distance (mm)		356	559	737	1016	1143
Dry Arcing Distance (mm)		165	241	311	368	430
Cantilever Strength(kN)		12.5	12.5	12.5	12.5	12.5
Power Frequency	Dry /kV	70	100	125	140	160
	Wet/kV	50	70	95	110	130
Critical Impulse Flashover Voltage	Positive/kV	120	160	200	230	265
	Negative/kV	155	205	260	340	380
radio Influence voltage	Test Voltage to ground/kV	15	22	30	44	44
	Maximum RIV t 1MHz/uV	100	100	200	200	200
