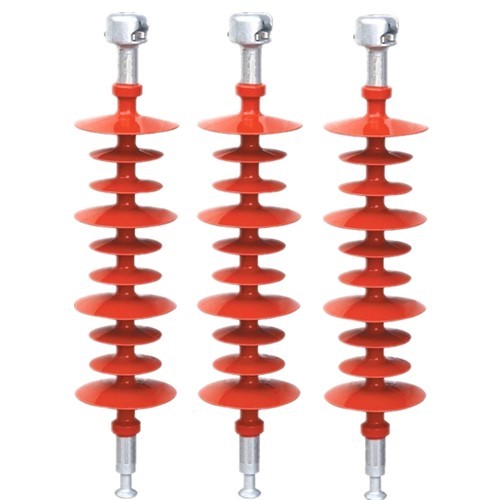

High Strength Composite Pin Insulator High Voltage Power Line Insulators

Quick Detail:

11kV-110kV Composite needle Insulator pillar insulator composite polymer insulato

OVERVIEW:

Composite polymer insulator is composed of epoxy glass fiber core rod, silicon rubber shed and metal parts.
Composite polymer insulator is of high strength and light weight. A synthetic insulator is 1/5 of that of porcelain insulator, but the circum-tensile strength of insulator is very high. Generally, it can be above 6000mpa.
Its umbrella skirt is an organic polymer structure of silicone rubber.Therefore, it has a strong anti-pollution performance.

The product has reliable structure and will not damage the core rod. It belongs to the rod-shaped insulation structure.

High Strength Composite Pin Insulator High Voltage Power Line Insulators 0

1. Shed connected with core by integral foring

2. The thinkness of housing > 3mm,unifirm to IEC Standard

3. Acid resistant,hight temperature resistant of epoxy fiberglass core

4. Metal end fittings,core and sheds connected by new crimping process

5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging the service life

High Strength Composite Pin Insulator High Voltage Power Line Insulators 1



High Strength Composite Pin Insulator High Voltage Power Line Insulators 2

High Strength Composite Pin Insulator High Voltage Power Line Insulators 3

Product Advantage:

① Light weight:

It's small in size and in light weight, it is about 1/5 to 1/9 of the porcelain insulator in the same grade voltage, so it' sconvenient for transportation and installation.

High Strength Composite Pin Insulator High Voltage Power Line Insulators 4



② Good anti-pollution

Composite insulator has a good anti-pollution performance, so it can operate safely in polluted areas, it requires neither annual cheaning nor maintaining at zero.

High Strength Composite Pin Insulator High Voltage Power Line Insulators 5

③ High antifouling property

Good aging resistance performance, strong ability of anti-pollution flashover and good electric corrosion resistance, can ensure that the internal insulation core will not be affected by moisture.

High Strength Composite Pin Insulator High Voltage Power Line Insulators 6

4. Strong shock resistance

Composite insulators have good brittleness resistance, strong shock resistance and there's no brittle fracture accident. Composite insulators are interchangeable with ceramic insulators.

High Strength Composite Pin Insulator High Voltage Power Line Insulators 7

⑤ Stable Performance

The composite insulator has high mechanical strength, reliable structure and stable performance, which provides a guarantee for the safe operation of the line.

High Strength Composite Pin Insulator High Voltage Power Line Insulators 8

Application:

suitable for multiple industries, widely used in power grid, petro chemical, wind power, machinery, construction, communications and other industries.

High Strength Composite Pin Insulator High Voltage Power Line Insulators 9

Related Product:

Polymer line Post Insulator / Composite Tensile Insulator / Composite Suspension Insulator



High Strength Composite Pin Insulator High Voltage Power Line Insulators 10



Composite Pin Insulator / Composite Post Insulator

High Strength Composite Pin Insulator High Voltage Power Line Insulators 11



Production and Quality Inspection

Composite Insulator
Hardware cleaning and drying, mandrel polishing
Pressure welding connection
Preheat degreasing coating coupling reagent
Integral injection seal molding
External inspection and renovation
Post cure
Predelivery test
Nameplate on qualified products
Product packaging and warehousing



Quality Inspection Process:

Material Incoming Inspection Items
a: Strong light test (every piece)
b: Porosity and warter diffusion test
c: Power frequency withstand voltage inspection
d: Tension force loading inspection



Inspection:
a: 50% rated mechnical load tensile test
b: 50% rated mechnical load bending tes
c: 50% rated mechniacl load torsinon test
d: Power frequency with stand voltage inspection



Sampling Inspection
a: Leakage current testing
b: The comparative and the proof tracking inspection
c: Lmpulse endurance test
d. lighting full-wave impulse test
e: Mechnical tensile test broking test



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
