Composite 66KV Line Post Insulator For Transformer Substation
Contact Person : Julia
Phone Number : 86-18037871307
WhatsApp : +8618037871307
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard National Packing Method | Delivery Time : | Depends on the quality of client |
| Payment Terms : | 30% advanced payment , 70% balance payment before shipment. |
| Place of Origin: | China | Brand Name: | DINGLI |
|---|---|---|---|
| Certification: | ISO9001,ASTM, | Model Number: | Insulator |
|
Detail Information |
|||
| Supply Ability: | 50000 Piece/Pieces Per Month | Material: | Composite Polymer, Silicone Rubber Insulator |
|---|---|---|---|
| Type: | Insulator | Model Number:: | U120B/146 |
| OEM/ODM: | Available | Color: | Gray Insulator |
| High Light: | post type insulator,composite post insulator |
||
Product Description

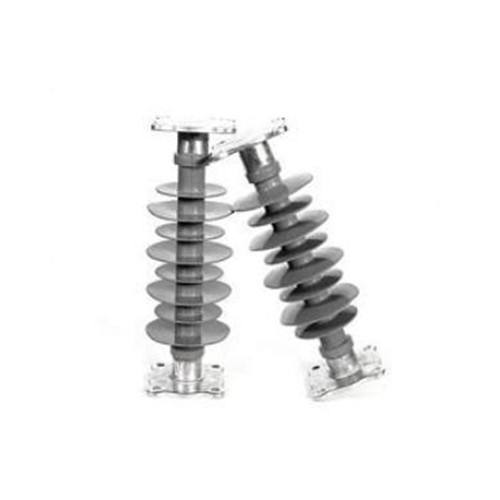

11kv Substation Post Insulator Composite Polymer Post Insulator For Transmission Line
Quick Detail:
11kv composite polymer post insulator for transmission line
OVERVIEW:
Composite polymer insulator is composed of epoxy glass fiber core rod, silicon rubber shed and metal parts.
Composite polymer insulator is of high strength and light weight. A synthetic insulator is 1/5 of that of porcelain insulator, but the circum-tensile strength of insulator is very high. Generally, it can be above 6000mpa.
Its umbrella skirt is an organic polymer structure of silicone rubber.Therefore, it has a strong anti-pollution performance.
The product has reliable structure and will not damage the core rod. It belongs to the rod-shaped insulation structure.
Specification:
| Polymer post Insulator Product Parameter | |||||||
| Type | Rated voltage(KV) | Specifified bending load | Section length(mm) | Min Arcdistance(mm) | Leakage distance (mm) | Lightning impulse withstand BIL(KV) | Power frequency withstand(wet) (KV) |
| FZSW-11/4 | 11 | 4 | 265 | 155 | 430 | 75 | 42 |
| FZSW-24/8 | 24 | 8 | 395 | 280 | 760 | 150 | 65 |
| FZSW-33/6 | 33 | 6 | 430 | 320 | 870 | 185 | 80 |
| FZSW-36/6 | 36 | 6 | 445 | 335 | 920 | 185 | 95 |
| FZSW-66/8 | 66 | 8 | 850 | 585 | 2570 | 400 | 130 |
| FZSW-66/10 | 66 | 10 | 860 | 720 | 2539 | 350 | 160 |
| FZSW-72.5/12.5 | 72.5 | 12.5 | 760 | 590 | 1950 | 400 | 185 |
| FZSW110/10 | 110 | 10 | 1050 | 885 | 3330 | 550 | 185 |
| FZSW-126/8 | 126 | 8 | 1220 | 1055 | 3500 | 550 | 185 |
| FZSW-132/10 | 132 | 10 | 1500 | 1300 | 3600 | 765 | 430 |
| FZSW220/10 | 220 | 10 | 2440 | 2200 | 7060 | 1000 | 395 |
| We can customize products according to the parameters and drawings required by customers | |||||||
Product Advantage:
① Light weight:
It's small in size and in light weight, it is about 1/5 to 1/9 of the porcelain insulator in the same grade voltage, so it' sconvenient for transportation and installation.
② Good anti-pollution
Composite insulator has a good anti-pollution performance, so it can operate safely in polluted areas, it requires neither annual cheaning nor maintaining at zero.
③ High antifouling property
Good aging resistance performance, strong ability of anti-pollution flashover and good electric corrosion resistance, can ensure that the internal insulation core will not be affected by moisture.
4. Strong shock resistance
Composite insulators have good brittleness resistance, strong shock resistance and there's no brittle fracture accident. Composite insulators are interchangeable with ceramic insulators.
⑤Stable Performance
The composite insulator has high mechanical strength, reliable structure and stable performance, which provides a guarantee for the safe operation of the line.
Application:
suitable for multiple industries, widely used in power grid, petro chemical, wind power, machinery, construction, communications and other industries.
Related Product:
Polymer line Post Insulator / Composite Tensile Insulator / Composite Suspension Insulator
Composite Pin Insulator / Composite Post Insulator
Production and Quality Inspection
Quality Inspection Process:
Material Incoming Inspection Items
a: Strong light test (every piece)
b: Porosity and warter diffusion test
c: Power frequency withstand voltage inspection
d: Tension force loading inspection
Inspection:
a: 50% rated mechnical load tensile test
b: 50% rated mechnical load bending tes
c: 50% rated mechniacl load torsinon test
d: Power frequency with stand voltage inspection
Sampling Inspection
a: Leakage current testing
b: The comparative and the proof tracking inspection
c: Lmpulse endurance test
d. lighting full-wave impulse test
e: Mechnical tensile test broking test
Packaging
1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
