FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Composite Polymer Model Number:: U120B/146
Usage: Insulation Protection OEM/ODM: Available
Supply Ability: 50000 Piece/Pieces Per Month Color: Gray Insulator
High Light:

composite post insulator

,

high voltage insulators

Product Description

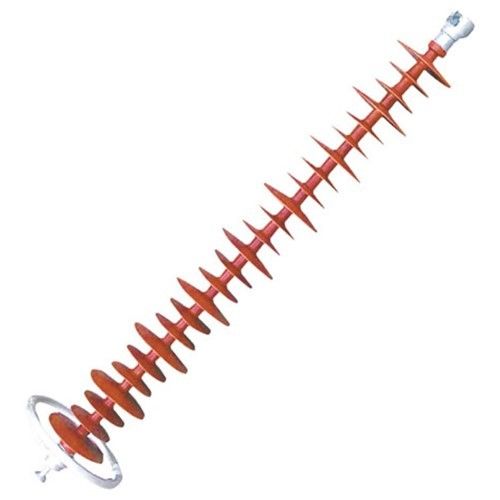

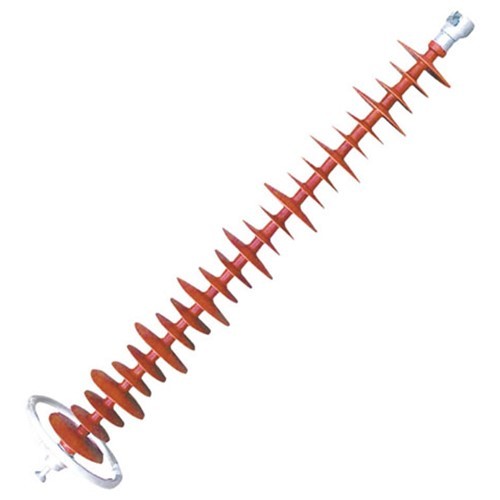

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance



Quick Detail:

Outdoor FZS series rod post composite insulators 12-252KV high voltage insulator



Description:

This product is suitable forpower plant facilities, with good hydrophobicity, aging resistance, resisance to tracking and erosion resistance, electrical resisitance, with hgih tenile strength and flexural strenght. Its high mechanical strenght, impact resistance, shock and anti-brittle fracture of good performamnce, light weight, ease of installation, its top and bottom mounting dimensions corresponding porcelain pillar install the same size, can be used interchangeably.



FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 0



FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 1

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 2

Product Advantage:



① Light weight:

It's small in size and in light weight, it is about 1/5 to 1/9 of the porcelain insulator in the same grade voltage, so it' sconvenient for transportation and installation.

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 3



② Good anti-pollution

Composite insulator has a good anti-pollution performance, so it can operate safely in polluted areas, it requires neither annual cheaning nor maintaining at zero.

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 4



③ High antifouling property

Good aging resistance performance, strong ability of anti-pollution flashover and good electric corrosion resistance, can ensure that the internal insulation core will not be affected by moisture.

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 5

4. Strong shock resistance

Composite insulators have good brittleness resistance, strong shock resistance and there's no brittle fracture accident. Composite insulators are interchangeable with ceramic insulators.

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 6

⑤ Stable Performance

The composite insulator has high mechanical strength, reliable structure and stable performance, which provides a guarantee for the safe operation of the line.

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 7

Application:

suitable for multiple industries, widely used in power grid, petro chemical, wind power, machinery, construction, communications and other industries.

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 8



Related Product:



Polymer line Post Insulator / Composite Tensile Insulator / Composite Suspension Insulator



FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 9

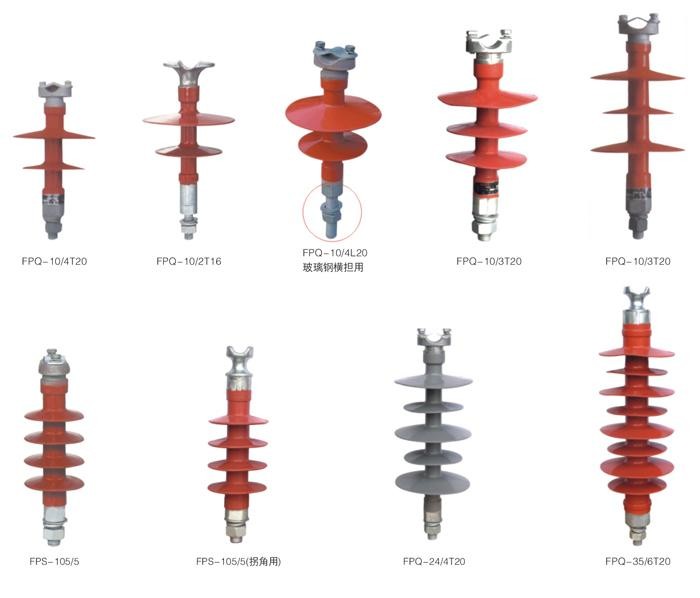

Composite Pin Insulator / Composite Post Insulator

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 10



Production and Quality Inspection



Composite Insulator
Hardware cleaning and drying, mandrel polishing
Pressure welding connection
Preheat degreasing coating coupling reagent
Integral injection seal molding
External inspection and renovation
Post cure
Predelivery test
Nameplate on qualified products
Product packaging and warehousing



Quality Inspection Process:



Material Incoming Inspection Items
a: Strong light test (every piece)
b: Porosity and warter diffusion test
c: Power frequency withstand voltage inspection
d: Tension force loading inspection



Inspection:
a: 50% rated mechnical load tensile test
b: 50% rated mechnical load bending tes
c: 50% rated mechniacl load torsinon test
d: Power frequency with stand voltage inspection



Sampling Inspection
a: Leakage current testing
b: The comparative and the proof tracking inspection
c: Lmpulse endurance test
d. lighting full-wave impulse test
e: Mechnical tensile test broking test



Packaging



1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 11



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 12



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



FZS Series Rod Post Composite Polymer Insulators HV Insulators Aging Resistance 13



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
