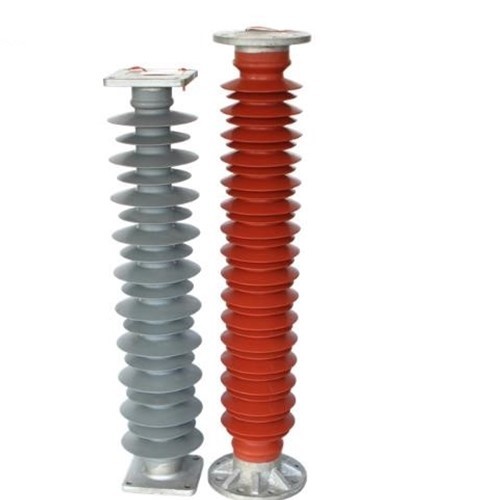

Light Weight Composite Suspension Insulator Silicone Rubber Insulator Fzsw Series

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Silicone Rubber And Epoxy Glass Fibre Rod Type: Post Insulator
Model Number: FZSW-12/4 TO FZSW-220/8 Certification: ISO 9001:2015
Application: High Voltage Substation Rated Voltag: 10kv To 220kv
Color: Red Or Gray Or As Per Customer Request
High Light:

post type insulator

,

composite post insulator

Product Description

Light Weight Composite Suspension Insulator Silicone Rubber Insulator Fzsw Series

Light Weight Composite Suspension Insulator Silicone Rubber Insulator Fzsw Series 0

Total Solution the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories



Quick Detail:

12kv-220kV composite and polymer silicone rubber post insulator



Composite Suspension Insulator

1. Product features
Silicone rubber umbrella skirt can increase the creepage distance and improve the outer insulation performance, and has good water repellency, migration, corrosion resistance, aging resistance, and shatter resistance; the hardware connection uses coaxial crimping technology, labyrinth outsourcing The waterproof design of the glue and the integral injection molding process make the product more sealed;

2. Structural characteristics
Executive standard
It complies with GB/T19519 "GBT 19519-2014 Overhead line insulators with nominal voltage higher than 1000V AC system for suspension and tensile composite insulator definition, test method and acceptance criteria".and conform to IEC 61952 AND ANSI C29 standard request and their type test requirements.



3. Raw materials
Made of high temperature resistant epoxy glass fiber insulated core rod, silicone rubber shed and upper and lower flanges

4. The use of the environment
Ambient temperature: -40 ° C ~ +40 ° C
Altitude: no more than 1500 meters
AC power frequency: no more than 100HZ
Maximum wind speed: no more than 35m/s
Earthquake intensity: no more than eight

5. Use
Mainly used for insulation and mechanical fixing of busbars and electrical equipment in power plants and substations. In addition, post insulators are often used as part of electrical equipment such as disconnectors and circuit breakers.

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

Light Weight Composite Suspension Insulator Silicone Rubber Insulator Fzsw Series 1

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Light Weight Composite Suspension Insulator Silicone Rubber Insulator Fzsw Series 2



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Light Weight Composite Suspension Insulator Silicone Rubber Insulator Fzsw Series 3

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.
